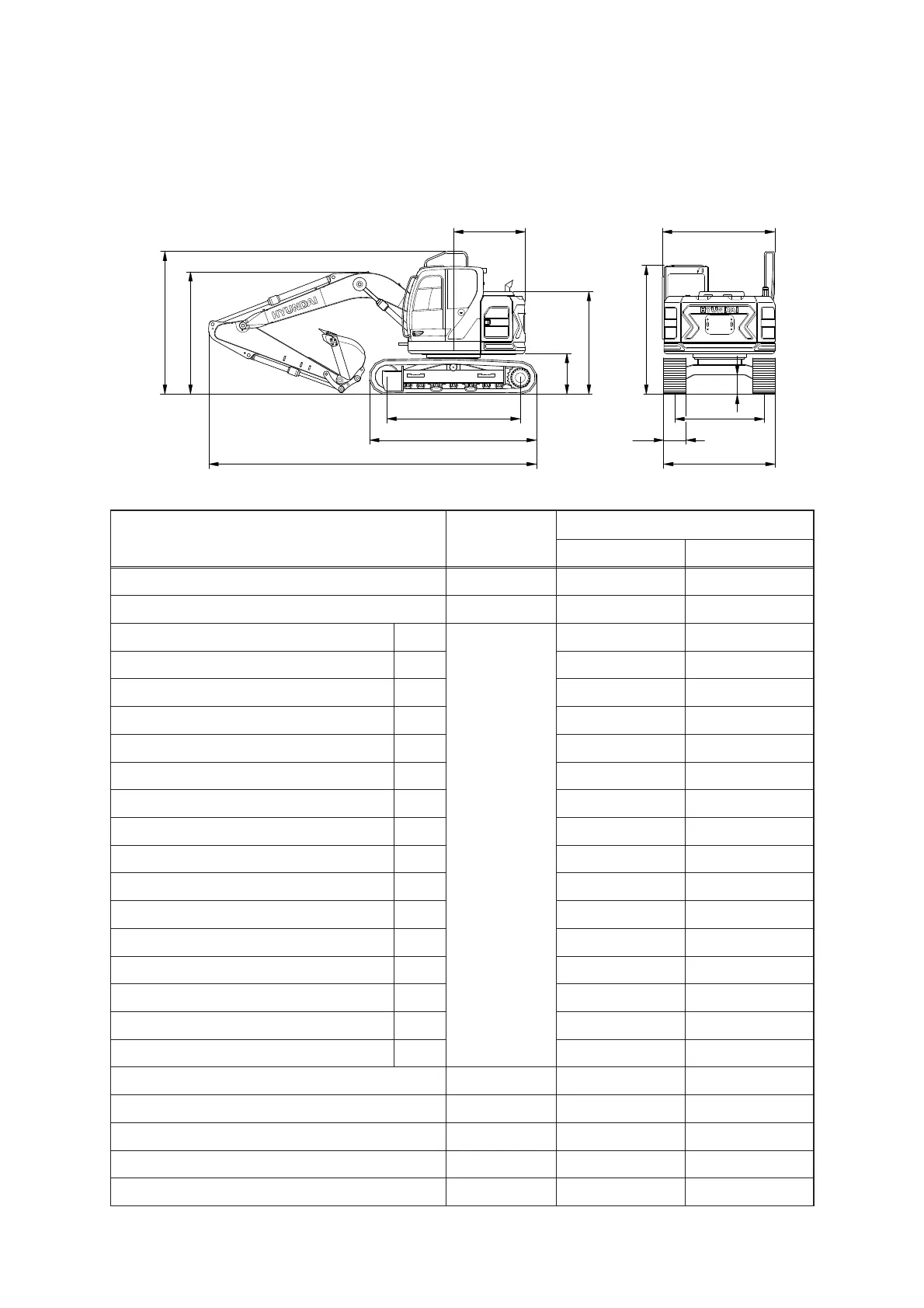

2. SPECIFICATIONS
A
C
K
J
E
F
G
I(I')
H
B(L)
N
M
D
C'
145ZF2SP02
Description Unit
Specification
1.9 m (6' 3") arm 2.1 m (6' 11") arm
Operating weight
kg (lb)
15180 (33470) 15210 (33530)
Bucket capacity (SAE heaped), standard
m
3
(yd
3
)
0.52 (0.68)
←
Overall length A
mm (ft-in)
7290 (23' 11") 7310 (24' 0")
Overall width, with 600
mm
shoe B 2600 (8' 6")
←
Overall height C 2630 (8' 8") 2710 (8' 11")
Overall height of guardrail C' 3215 (10' 7")
←
Superstructure width D 2500 (8' 2")
←
Overall height of cab E 2900 (9' 6")
←
Ground clearance of counterweight F 930 (3' 1")
←
Engine cover height G 2320 (7' 7")
←
Minimum ground clearance H 440 (1' 5")
←
Rear-end distance I 1500 (4' 11")
←
Rear-end swing radius I' 1500 (4' 11")
←
Distance between tumblers J 2910 (9' 7")
←
Undercarriage length K 3618 (11' 8")
←
Undercarriage width L 2600 (8' 6")
←
Track gauge M 2000 (6' 7")
←
Track shoe width, standard N 600 (24")
←
Travel speed (low/high)
km/hr (mph)
3.3/5.5 (2.1/3.4)
←
Swing speed
rpm
11.2
←
Gradeability
Degree
(
%
) 35 (70)
←
Ground pressure (600
mm
shoe)
kgf/cm
2
(psi)
0.40 (5.7) 0.40 (5.72)
Max traction force
kg (lb)
12000 (26455)
←
HX145 CR
4.
60 m (15' 1") boom and 1.9 m (6' 3"), 2.1 m (6' 11") arm
60 m (15' 1") boom and 1.9 m (6' 3"), 2.1 m (6' 11") arm
