Hyundai HX145 LCR User Manual

1-13
3.
3.

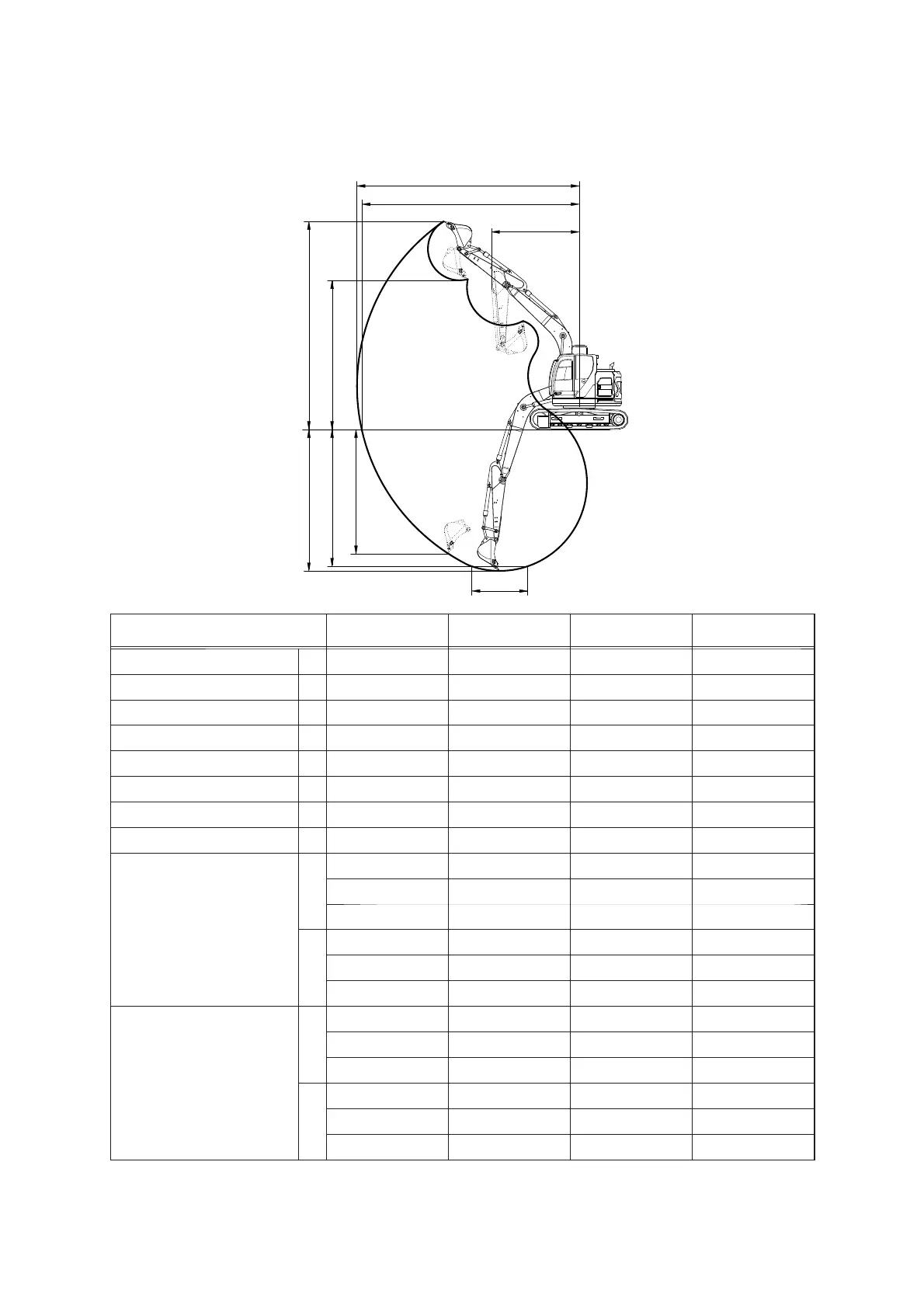

WORKING RANGE
WORKING RANGE
A
A'
F
D
E
B
B'
C
8ft
4.60
4.60
m (15' 1") MONO
(15' 1") MONO
BOOM
BOOM
※ : STD [ ] : Power boost
145ZF2SP04
1)
1)
Description
1.90 m (6' 3") Arm 2.10 m (6' 11") Arm ※2.50 m ( 8' 2") Arm 3.00 m ( 9' 10") Arm
Max digging reach
A
7730 mm (25' 4") 7900 mm (25'11") 8310 mm (27' 3") 8770 mm (28' 9")
Max digging reach on ground
A'
7580 mm (24'10") 7750 mm (25' 0") 8170 mm (26'10") 8630 mm (28' 4")
Max digging depth
B
4890 mm (16' 1") 5100 mm (16' 9") 5500 mm (18' 1") 5990 mm (19' 8")
Max digging depth (8ft level)
B'
4640 mm (15' 3") 4870 mm (16' 0") 5290 mm (17' 4") 5810 mm (19' 1")
Max vertical wall digging depth
C
4400 mm (14' 5") 4600 mm (15' 1") 5000 mm (16' 5") 5400 mm (17' 9")
Max digging height
D
8840 mm (29' 0") 8970 mm (29' 5") 9350 mm (30' 8") 9730 mm (31'11")
Max dumping height
E
6350 mm (20'10") 6470 mm (21' 3") 6850 mm (22' 6") 7230 mm (23' 9")
Min swing radius
F
1860 mm ( 6' 1") 2030 mm ( 6' 8") 1980 mm ( 6' 6") 2260 mm ( 7' 5")
Bucket digging force
SAE
87.3 [94.8] kN 87.3 [94.8] kN 87.3 [94.8] kN 87.3 [94.8] kN
8900 [9660] kgf 8900 [9660] kgf 8900 [9660] kgf 8900 [9660] kgf
19620 [21300] lbf 19620 [21300] lbf 19620 [21300] lbf 19620 [21300] lbf
ISO
102 [110.8] kN 102 [110.8] kN 102 [110.8] kN 102 [110.8] kN
10400 [11290] kgf 10400 [11290] kgf 10400 [11290] kgf 10400 [11290] kgf
22930 [24890] lbf 22930 [24890] lbf 22930[24890] lbf 22930 [24890] lbf
Arm crowd force
SAE
76.5 [83.1] kN 73.6 [79.9] kN 62.8 [68.2] kN 55.9 [60.7] kN
7800 [8470] kgf 7500 [8140] kgf 6400 [6950] kgf 5700 [6190] kgf
17200 [18670] lbf 16530 [17950] lbf 14110 [15320] lbf 12570 [13640] lbf
ISO
80.4 [87.3] kN 77.5 [84.1] kN 65.7 [71.4] kN 57.9 [62.8] kN
8200 [8900] kgf 7900 [8580] kgf 6700 [7270] kgf 5900 [6410] kgf
18080 [19630] lbf 17420 [18910] lbf 14770 [16040] lbf 13010 [14120] lbf
