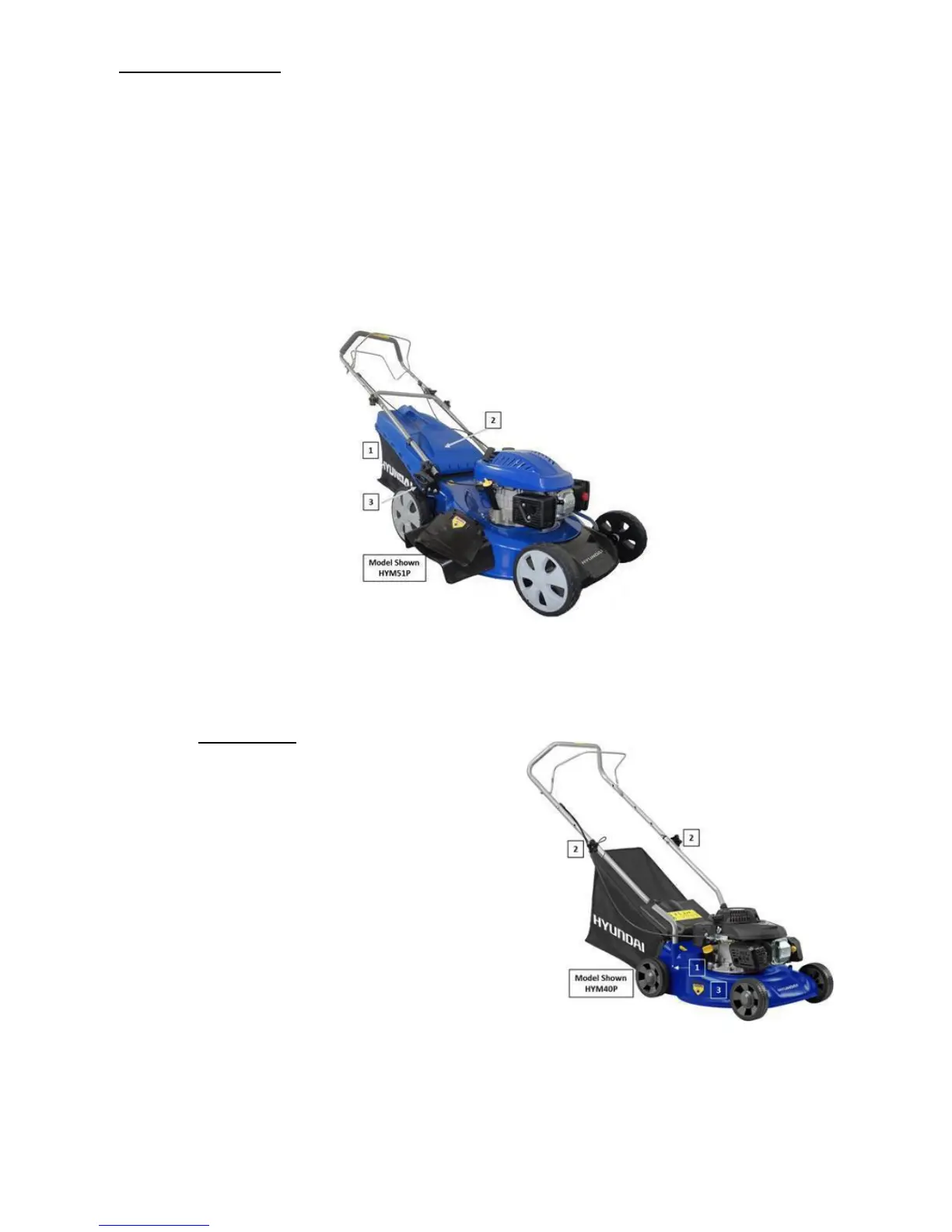

3. ASSEMBLY PROCEDURE
3.1. Remove machine from packaging then;
3.2. Catcher assembly.
3.2.1. On the HYM40P, 41P, 43P and 43SP, insert metal frame.
3.2.2. On lawnmower lift rear cover (2) and clip the grass catcher (1) onto the rear of the mower at
point (3).
3.2.3. To remove the grass catcher lift the rear cover (2) and unhook the grass catcher (1).
3.3. Handle assembly. N.B. Locking knobs vary between models)
3.3.1. HYM40P only.
3.3.1.1. Slot handles in base unit (3) and use
supplied screws (1) to lock into place.
Fold up arms and tighten securing knobs
(2) as shown.
To Next Page
