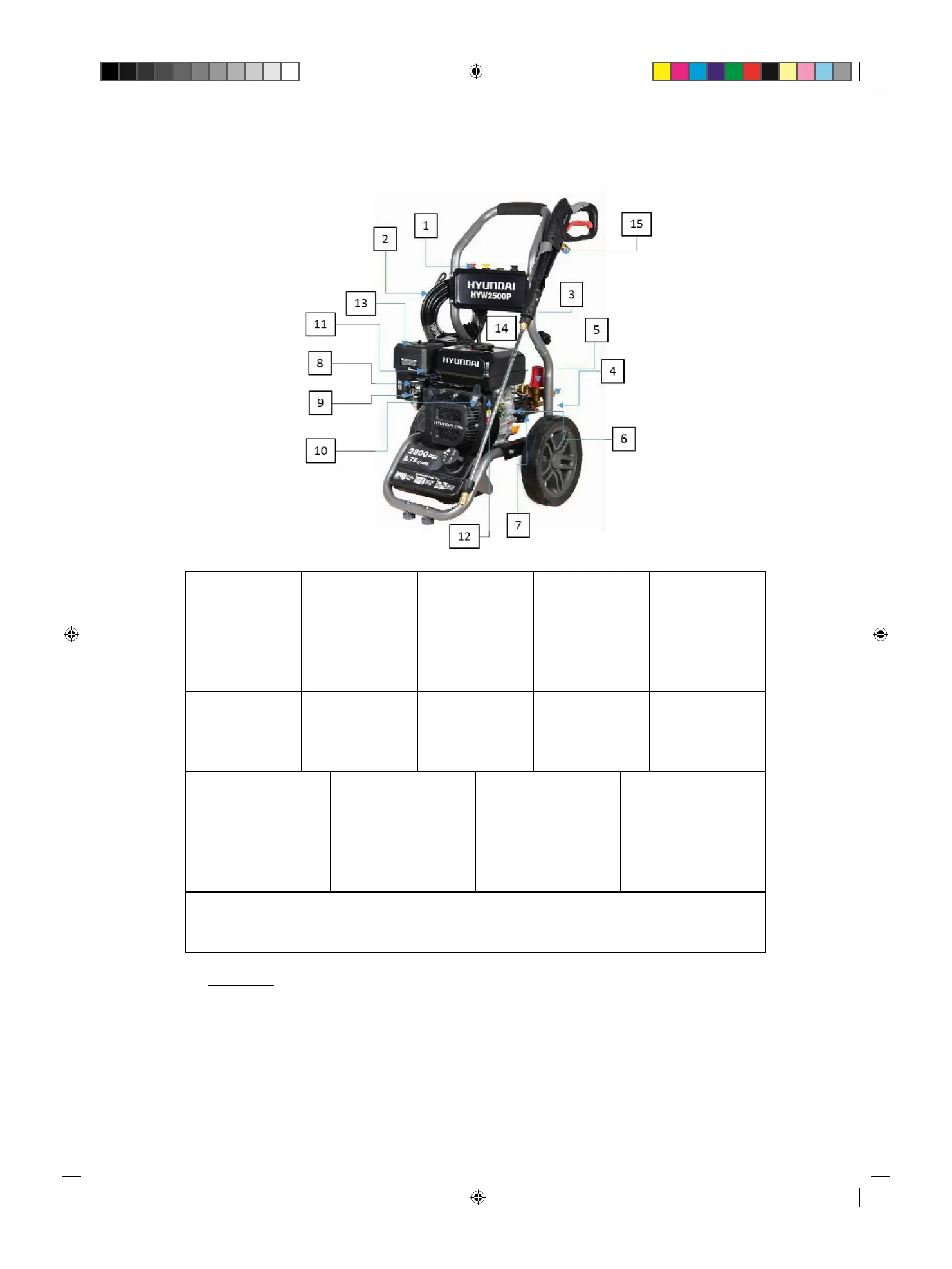

1. Nozzles
Detergent, 0°,
15°, 40° & Turbo
Nozzle: for high
pressure cleaning
applications.
2. High Pressure
Hose Connect
one end to water
pump and the
other end to
spray gun.
3. Pressure
Control Knob
Varies pressure
of high pressure
spray.
4. Water Inlet
Connection for
garden hose.
5. High Pressure
Outlet
Connection for
high pressure
hose.
6. Pump
Develops high
pressure.
7. Oil Level
Indicator Level
should be at
halfway
8. Choke Lever
Prepares a cold
engine for
starting.
9. Fuel Valve
used to turn fuel
supply on and off
to engine.
10. Recoil Starter
Used for starting
the engine
manually.
11. Throttle Lever
Sets engine in starting
mode for pull starter.
12. Engine Switch Set
switch to “On” for pull
starting. Set switch to
“Off” to stop a running
engine.
13. Air Filter Protects
engine by filtering
dust and debris out of
air intake.
14. Fuel Tank Fill tank
with regular unleaded
fuel. Always leave
room for fuel
expansion (25mm
from top)
15.Spray Gun Extension with Quick Connect Nozzles Controls the application of water onto
cleaning surface with trigger device. Includes trigger lock. Allows you to switch between five
different nozzles.
12
5. ASSEMBLY
5.1. Your pressure washer requires some assembly and is ready for use after it has been
properly filled with both the recommended oil and fuel.
5.2. If you have any problems with the assembly of your pressure washer, please call the
help line. If calling for assistance, please have the model and serial number from the
data tag available.
