Emergency Situations
7-10
OQX069034L
OQX079024N

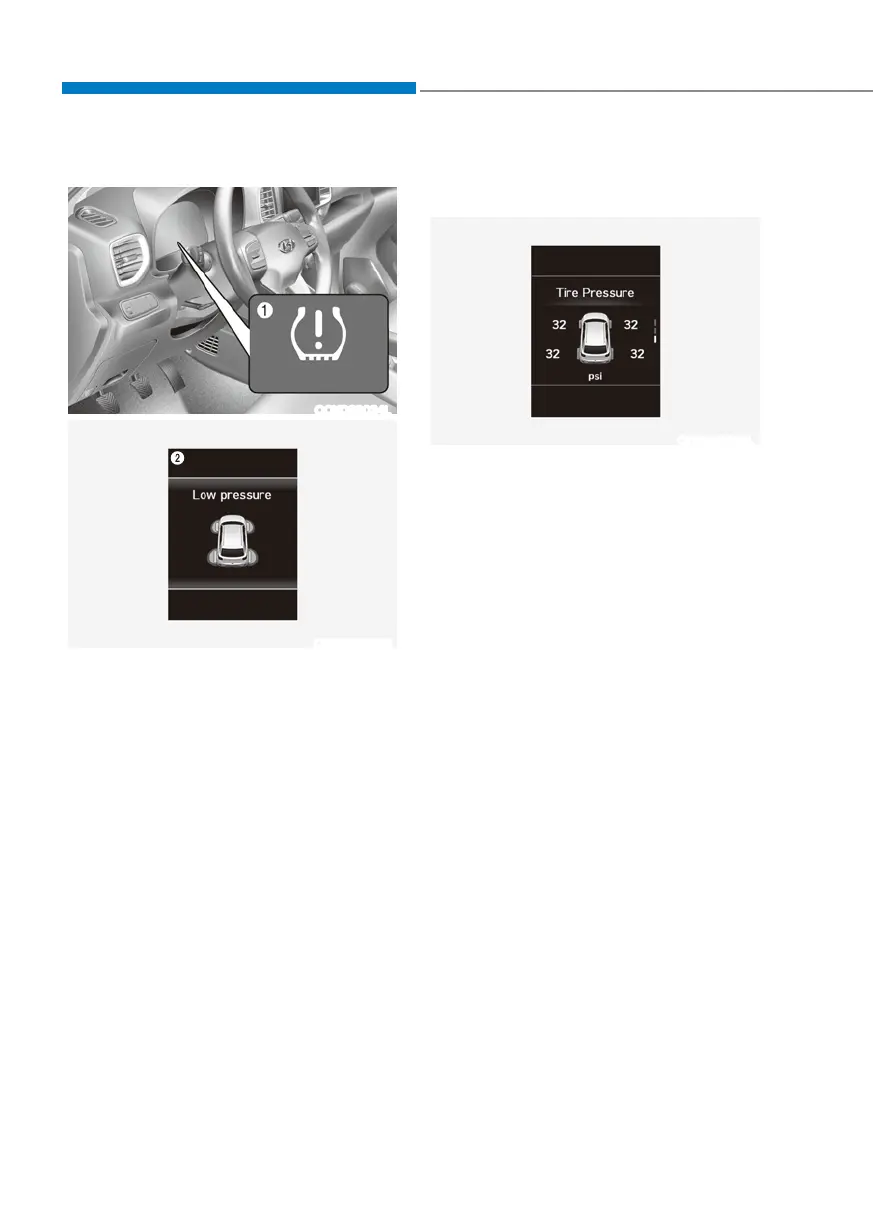

(1) Low Tire Pressure / TPMS Malfunction
Indicator Lamp
(2) Low Tire Pressure / Tire Pressure
Monitor / TPMS Malfunction Display
(shown on the cluster LCD display)
Check Tire Pressure
OQX049029L
ś You can check the tire pressure in the
Assist mode on the cluster.
Refer to the “LCD Display Mode”
section in chapter 4.
ś A “Drive to display” message will
appear for the first few minutes of
driving after initial engine start up.
If the tire pressure is not displayed
after a few minutes of driving, check
the tire pressures.
ś The displayed tire pressure values may
differ from those measured with a tire
pressure gauge.
ś You can change the tire pressure unit
in the User Settings mode on the
cluster.
- psi, kpa, bar (Refer to the “User
Settings Mode” section in chapter
4).
7,5(35(6685(021,725,1*6<67(0ǣ7306Ǥǣ,)(48,33('Ǥ
ǣ7<3(%Ǥ
