5
¼·20 x 1” Allen
PC60622

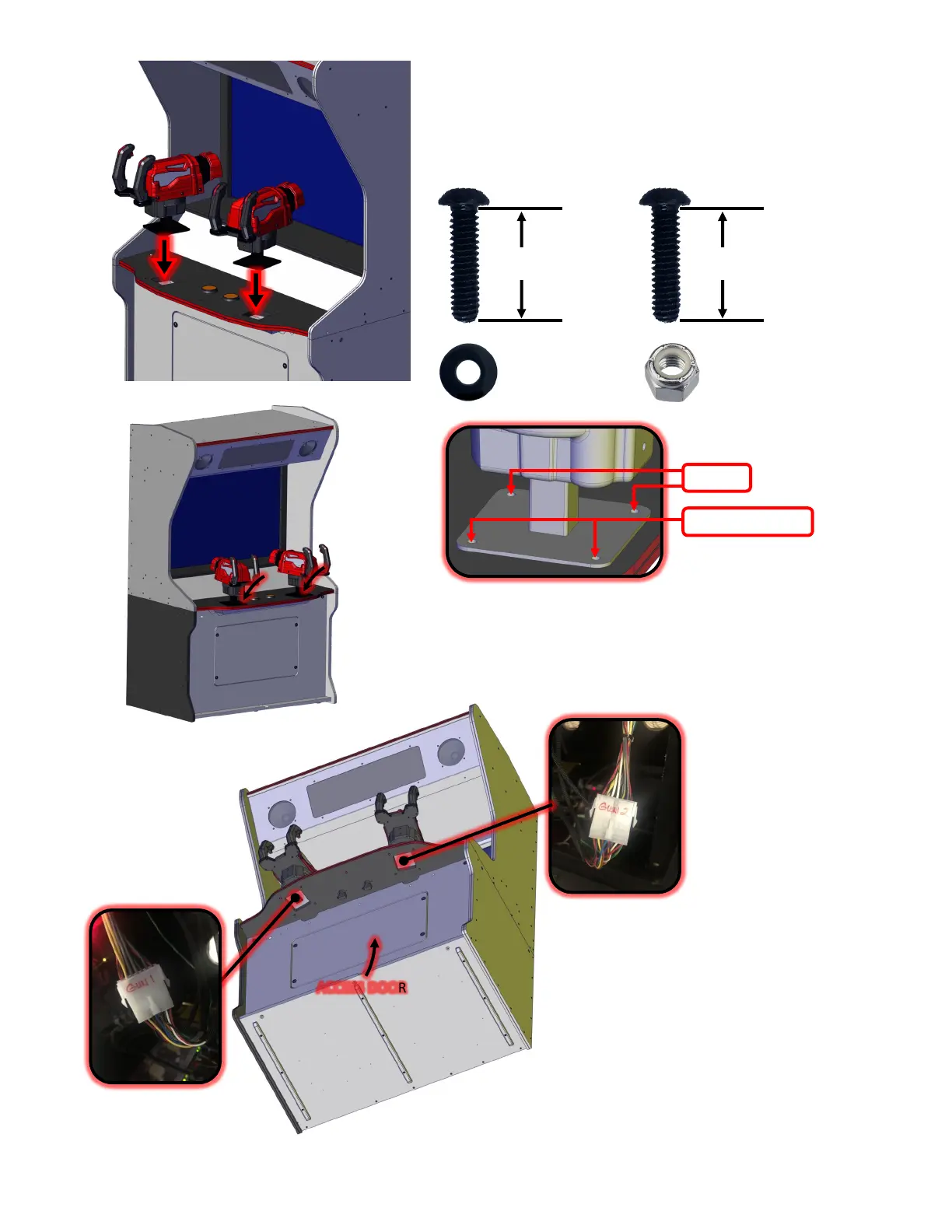

Unpack the two gun assemblies. Insert the gun
assembly into the gun mounts on the control
panel.
Use PC60622 Allen bolts at the rear and AA6281 Allen
bolts with AA6212 washers at the front. Secure the
front Allen’s with PC60604 nylon nuts.
Connect the gun harnesses to
the cabinet from underneath.
You might have to remove the
front access door to find them.
ACCESS DOOR
NOTE: View is from underneath cabinet.
AA6212
PC60604
¼·20 x 1½” Allen
AA6281
AA6281
PC60622 + AA6212
To Next Page
