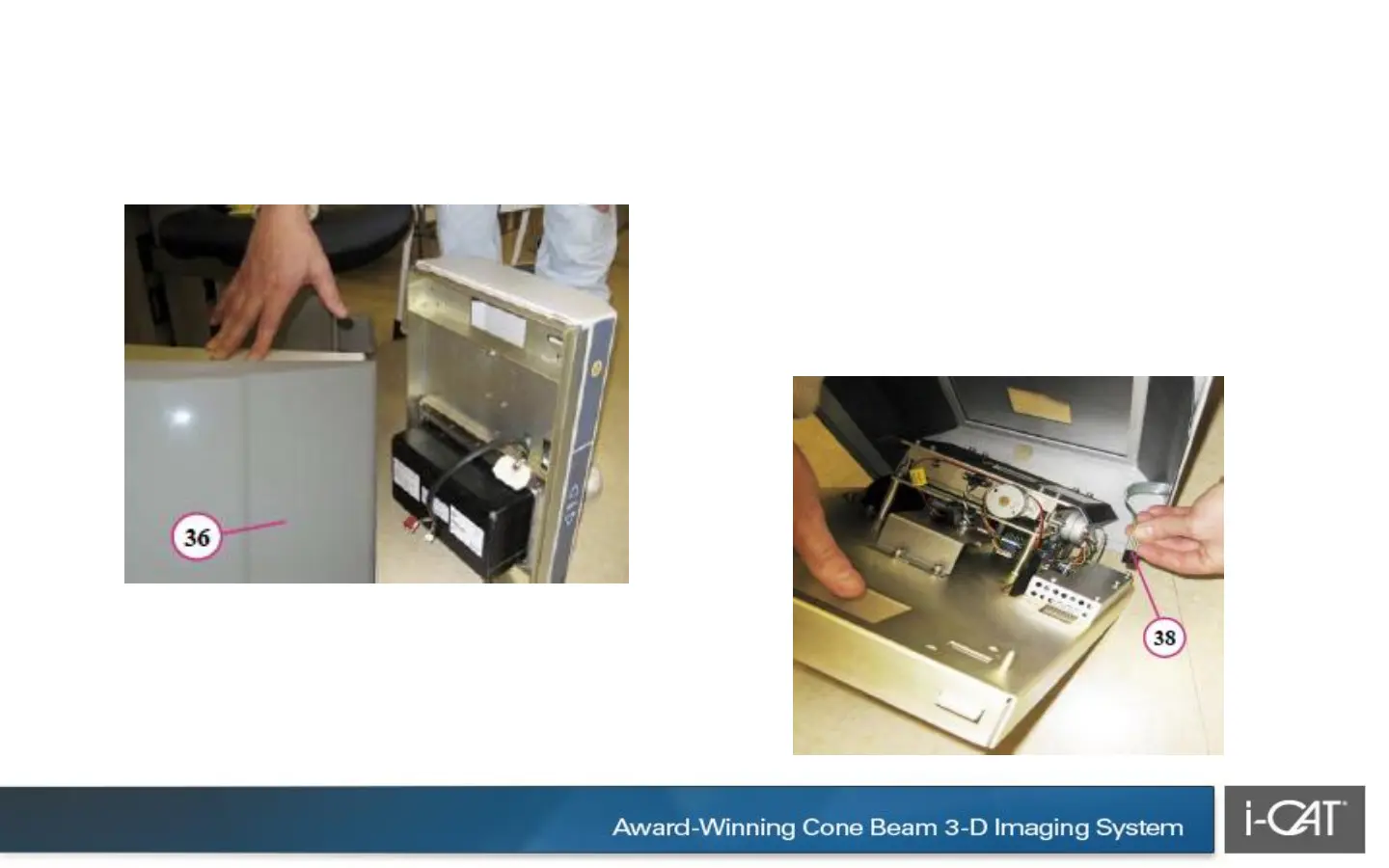

36. Detach outer cover ONLY. 37. Carefully detach and move inner
source cover a few inches away from
assembly.
38. Remove ribbon cable from beam
limiter assembly by pressing connector
locking tab.
