i-milk V1 Operating Manual July 2018
4

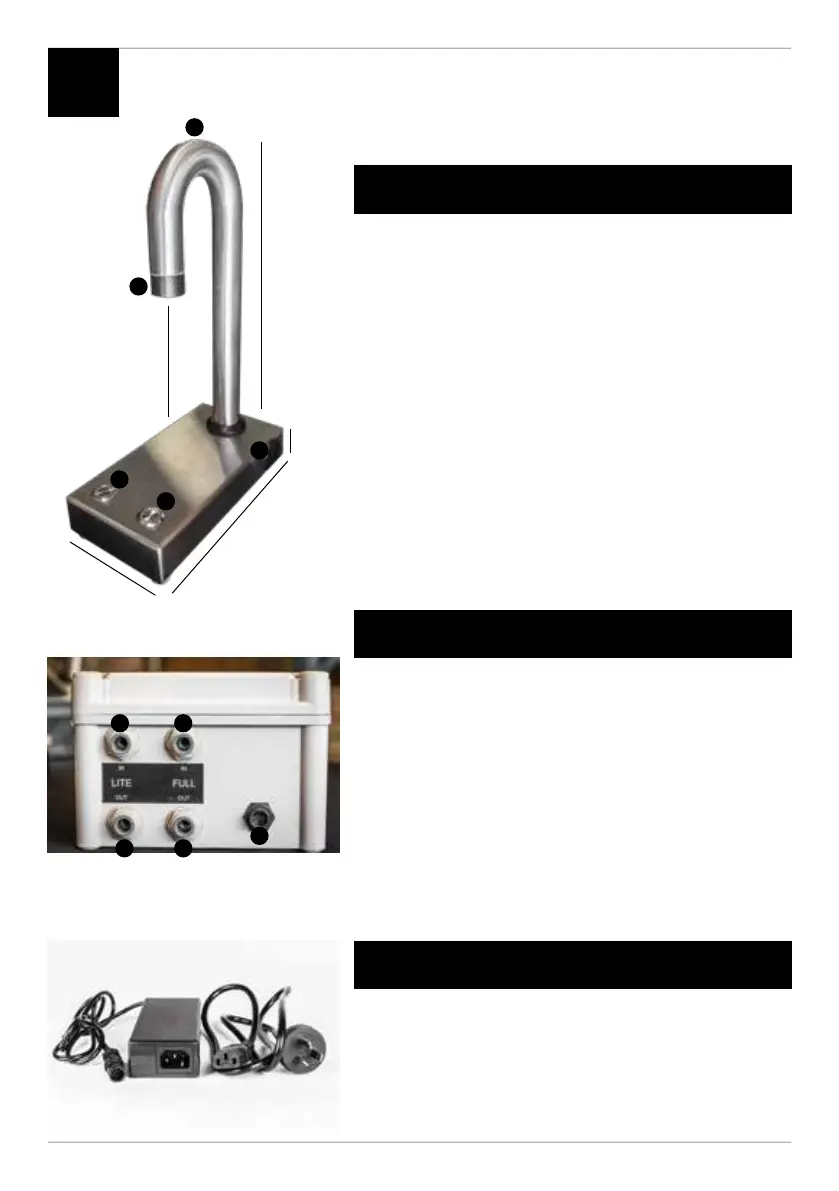

Dispensing Head
Pump Box
Power Supply
This dispenses the milk and should be installed on a at
horizontal surface.
This should be installed in a refrigerated environment,
either oor or wall mounted. Installing in a non-refrigerated
environment will void your warranty.
Each i-milk mini is supplied with a 110/220v converter with a plug
suitable to use in the country of sale. These plugs are earthed
and must not be substituted with non-earthed plugs.
The converter produces 24VDC 5A that operates the i-milk mini.
A Removable Milk Filter
B Milk Font
C Variety A Milk Button
D Variety B Milk Button
E Outlet for milk line and signal cable. Also accessible
on opposite side of dispenser and underneath
A LITE IN
B FULL IN
C LITE OUT
D FULL OUT
E Pump Box Input
Familiarisation
1
360
185
50
235
120
A
B
E
D
C
A B
D
E
C
