3-3. Terminal part names
3-3-1. Female terminal
3-4.Crimping requirements
Crimp dimension
Crimped terminals must satisfy the crimp dimension specified in Table 1.
※Crimp dimensions may be different depending on conductor construction of the wire.
Please contact our Sales Department shown in 14(sheet 29) about wire used, then we will verify it and
notify you the appropriate crimp dimensions.
0.5mm
2
0.95±0.05 (※)
1.80±0.05
1.60+0.1/-0.05
1.55±0.05
VT001-512
VT002-012
0.3mm
2
φ1.60mm MAX.
0.90±0.05 (※)
1.40±0.04
Insulation barrel
crimp width
Terminal Part No.
Wire size
Insulation
outer diameter
Wire barrel
crimp height
Wire barrel
crimp width
Insulation barrel
crimp height

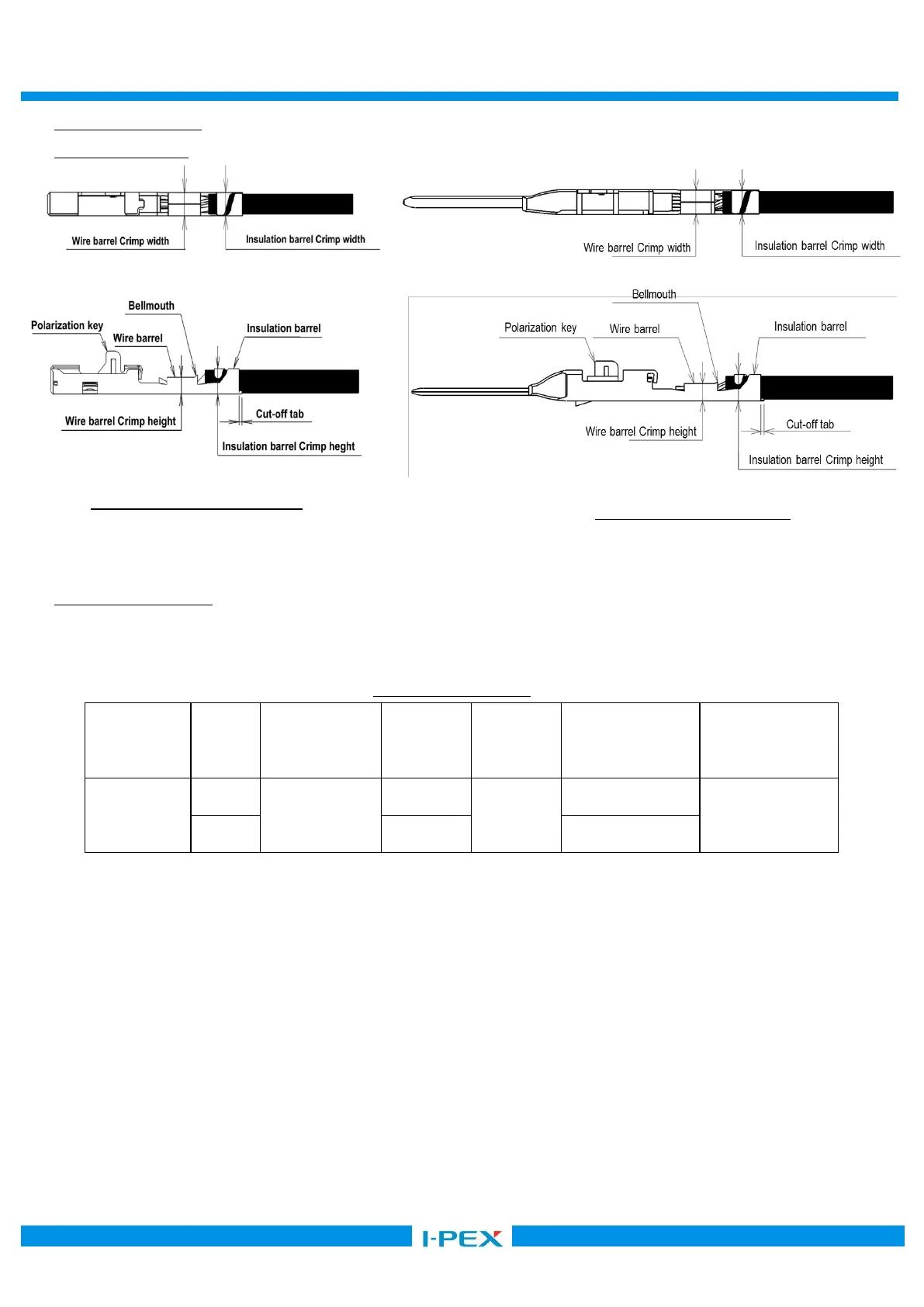

Fig.4 Female terminal part names
Fig.5 Male terminal part names
Table 1 Crimp dimension
