I-PEX ISH VW - Crimping Procedure

ISHVW CONNECTOR Instruction Manual
Document No.
HDM-0012
4 / 29
Confidential C
3. Crimping procedure
3-1.Applicable wires
3-2. Wire strip length
①Strip the insulation off by 3.0±0.1mm (see Fig.2)
②Check to see that there is no damage to the conductors or insulation, cut off conductors, short conductors
and deformed conductors as shown in Fig. 3.
Do not use wires with damaged conductors, cut off conductors, short conductors and deformed conductors.
Using faulty wires may cause crimping problems.
MALE TERMINAL
VT002-012
VT001-512
Wire size：0.3mm
2
，0.5mm
2
Insulation outer diameter：φ1.60mm MAX.
FEMALE TERMINAL
Terminal Type
Terminal Parts No.
Applicable Wire
Cut off conductors
(defect)
Deformed conductors
(defect)
Condition
Good
Damaged conductors
(defect)

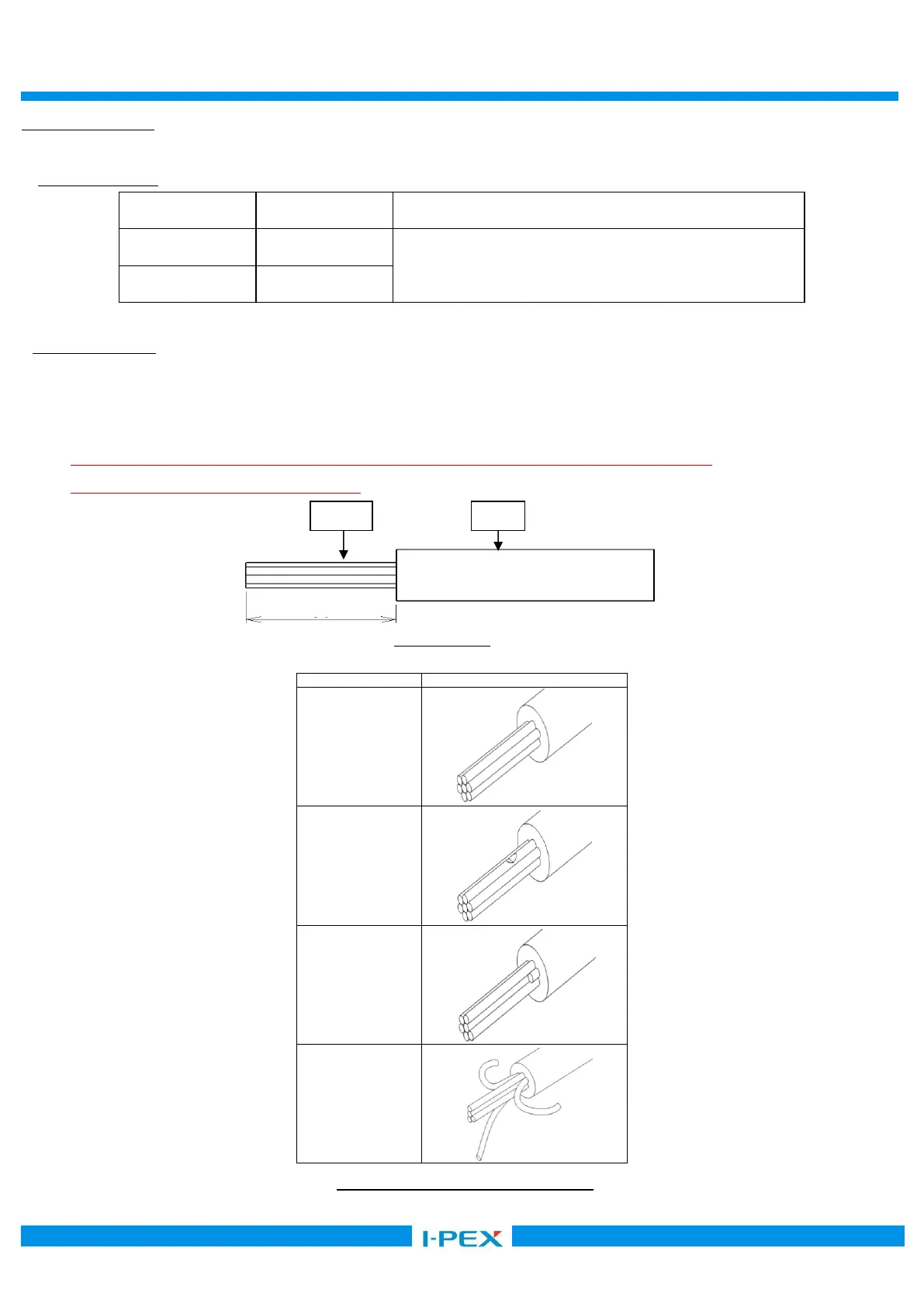

Fig.2 Wire strip
Fig.3 Wire strip(Unacceptable examples)
3.0±0.1mm
Conductors
Insulation
