Installation & Operation Manual for IOE6SE2 oven
Disassembling/assembling the oven door
To make it easier to clean the inside of your oven, the oven door can be removed, by proceeding
as follows (fig. 11):
● Open the door completely and lift the 2 levers “B” (fig.11-1);
● Shut the door slightly, and lift it out by pulling out the hooks “A” as shown in figure 11.2.
To reassemble the door:
● With the door in a vertical position, insert the two hooks “A” into the slots;
● Ensure that seat “D” is hooked perfectly onto the edge of the slot (move the oven door
backwards and forward slightly);
● Keep the oven door open fully, unhook the 2 levers “B” downwards and then shut the door
again.

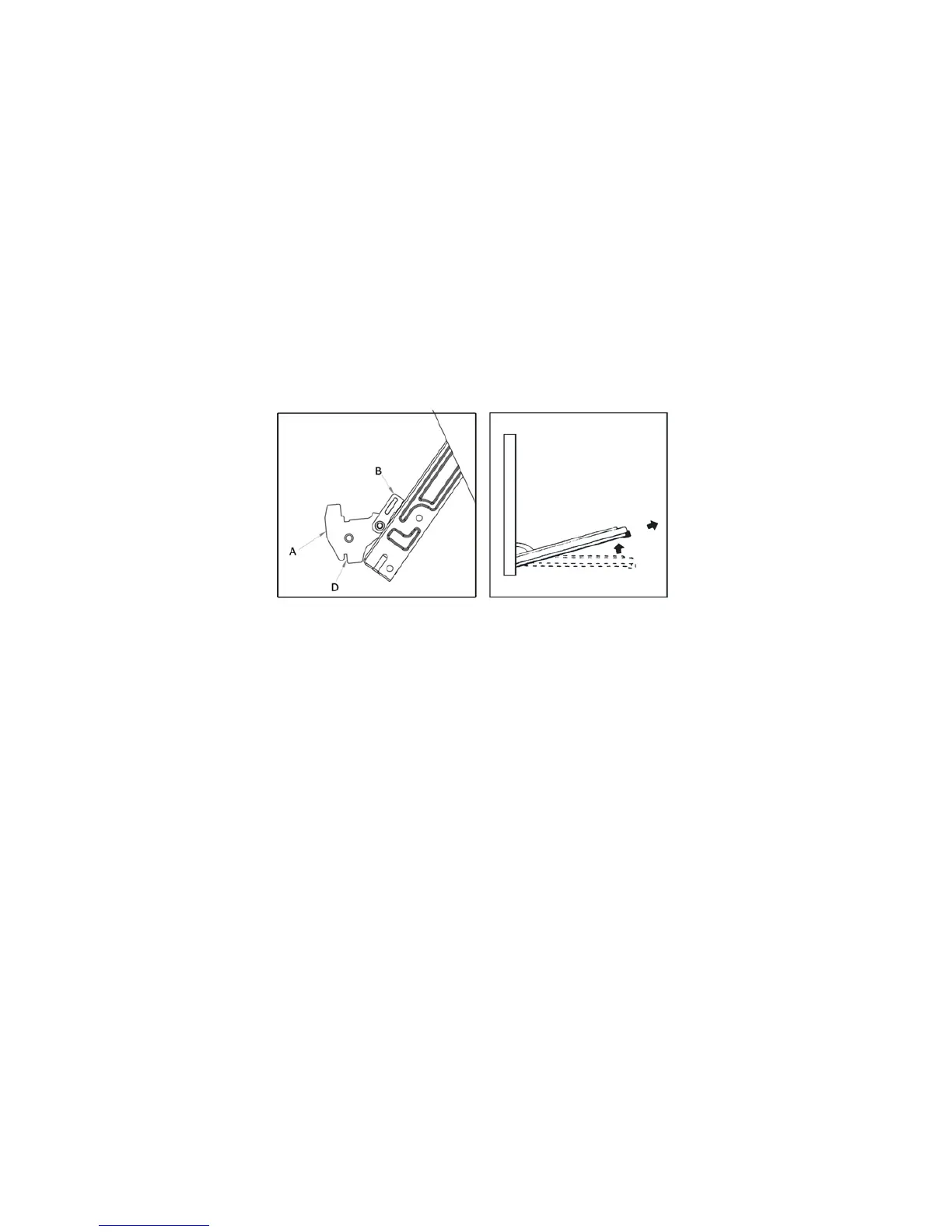

Fig.11-1 Fig.11-2
