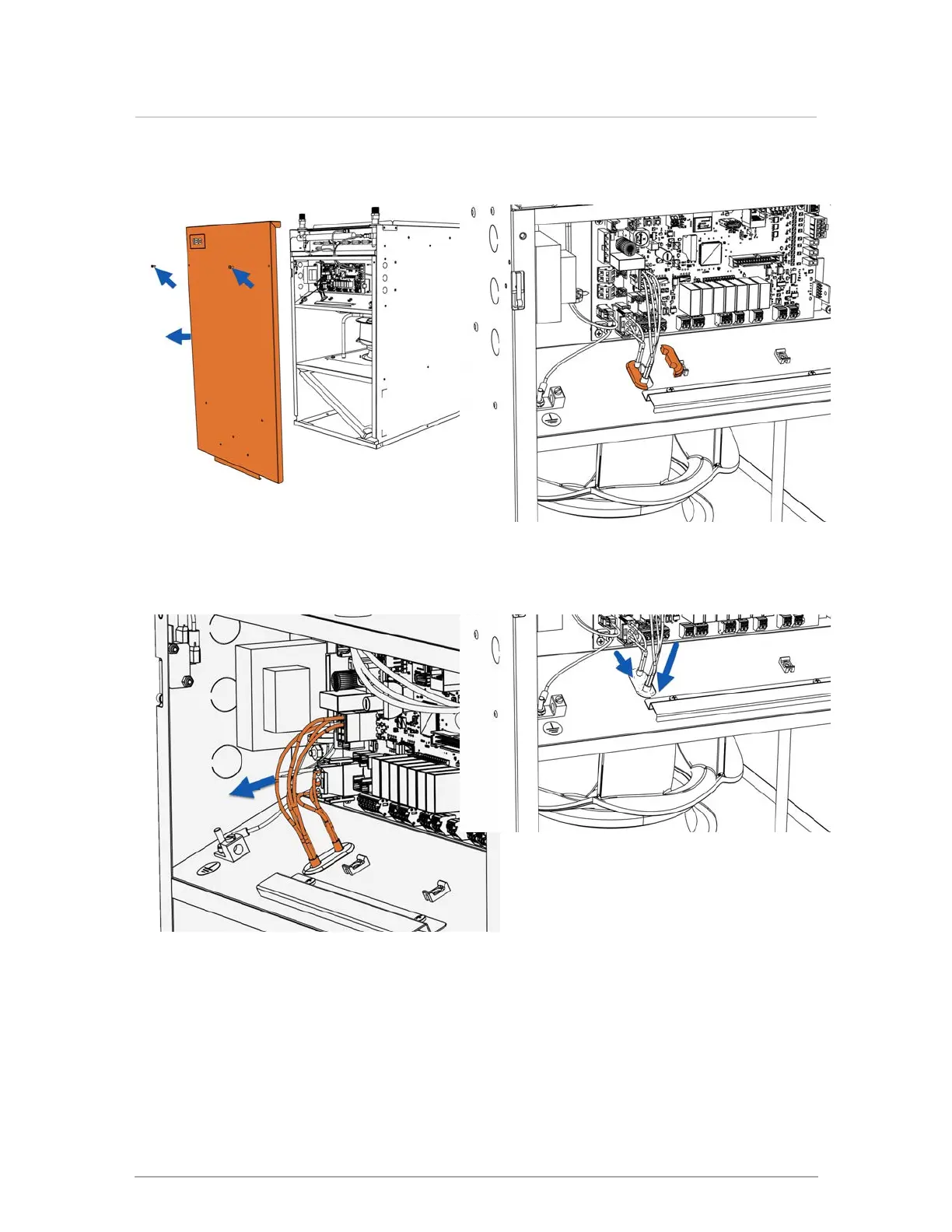

Remove the two screws from the front

cover, and set aside.

Remove the grommet around the electrical

wires.

Disconnect the fan electrical wires

from the control board.

Thread the wires through the grommet

hole.

Section: Service and maintenance
