Ibiza LC192DMX-MINI User Manual

©Copyright LOTRONIC 2018 LC192DMX-MINI 3

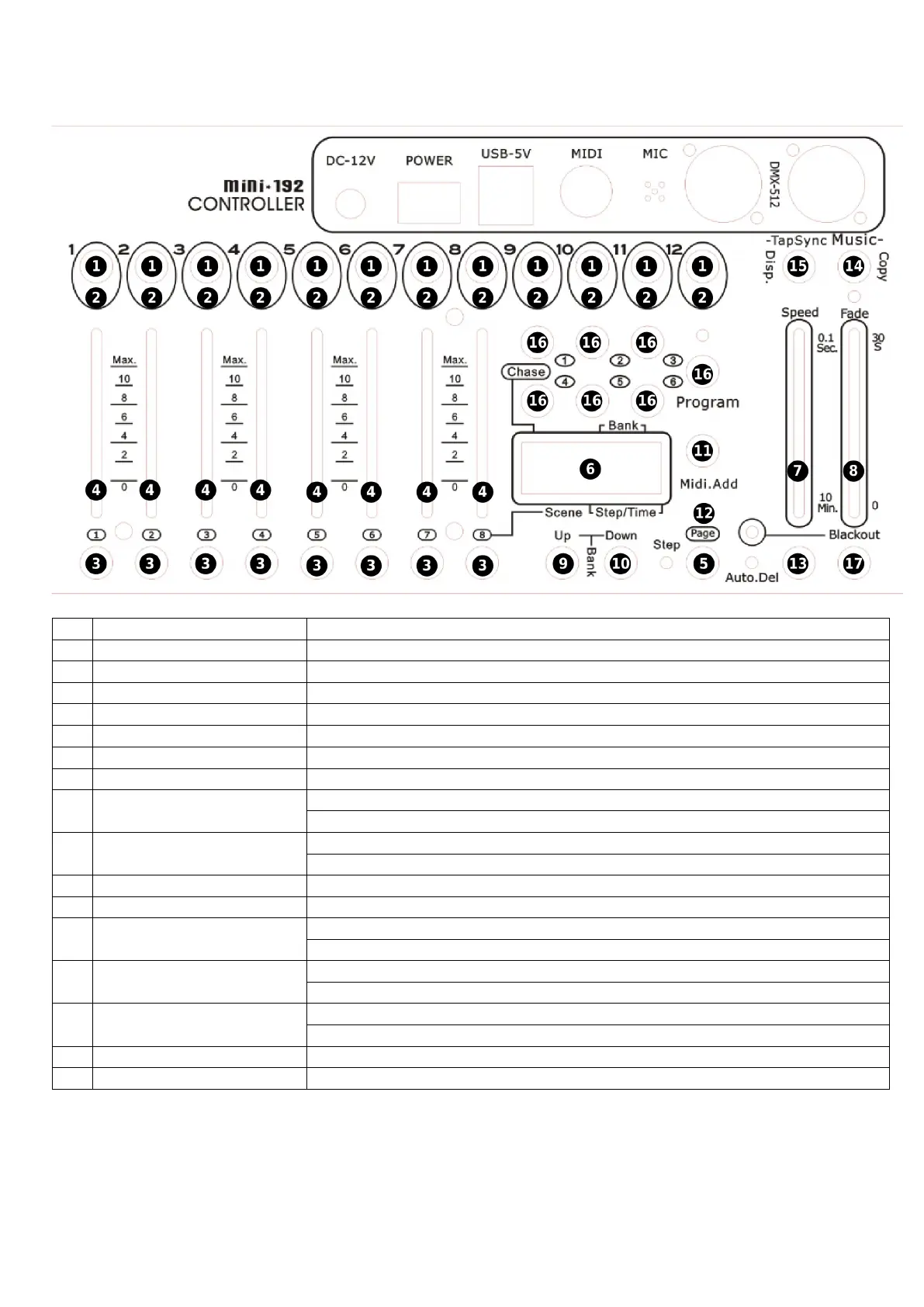

2.3 Product Overview (front)
1
Fixture Select Buttons
Selects the lighting fixture
2
Fixture Indicator LEDs
Indicates the active fixtures
3
Scene Select Buttons
Stores and selects scenes
4
Channel Faders
Adjusts DMX parameter values
5
Page Select Button
Switches the faders between 1-8 and 9-16
6
LCD Display Window
Displays current parameters or status
7
Speed Fader
Adjustment of scene hold time or step time
8
Fade Time Fader
Adjustment of the fading rate / cross-fading
9 Bank Up Button
Step forward scenes/steps in banks/chases
Increment DMX values when FINE button is active
10 Bank Down Button
Step backward scenes/steps in banks/chases
Decrement DMX values when FINE button is active
11
Program Button
Enter Program mode
12
MIDI/Add Button
Activates the external control from MIDI / set MIDI address
13 Auto/Del Button
Activates the Auto mode
Delete key during Program mode
14 Music/Bank Copy Button
Activates the Music mode
Copy key during Program mode
15 Tap Sync Display Button
Tap tempo sync during program playback
Switch DMX display to percentage in Program mode
16
Chase Buttons
Chase memory select 1-6
17
Blackout Button
Switches all lights off
2.4 Common Terms
The following are common terms used in intelligent light programming.
Blackout is a state where the light output of all fixtures is set to 0 or off, usually on a temporary basis.
DMX-512 is an industry standard digital communication protocol used in entertainment lighting equipment. For more information
read Sections DMX Primer and DMX Control Mode in the Appendix.
