Loading Paper into 2000-Sheet Input Drawer - Tray 3
The 2000-sheet input drawer can hold up to 2000 sheets of paper. (See Figure 2 on
page 4 for location.)
Follow these steps:
Note: Instructions for loading paper are also provided on the paper drawer for your
convenience.

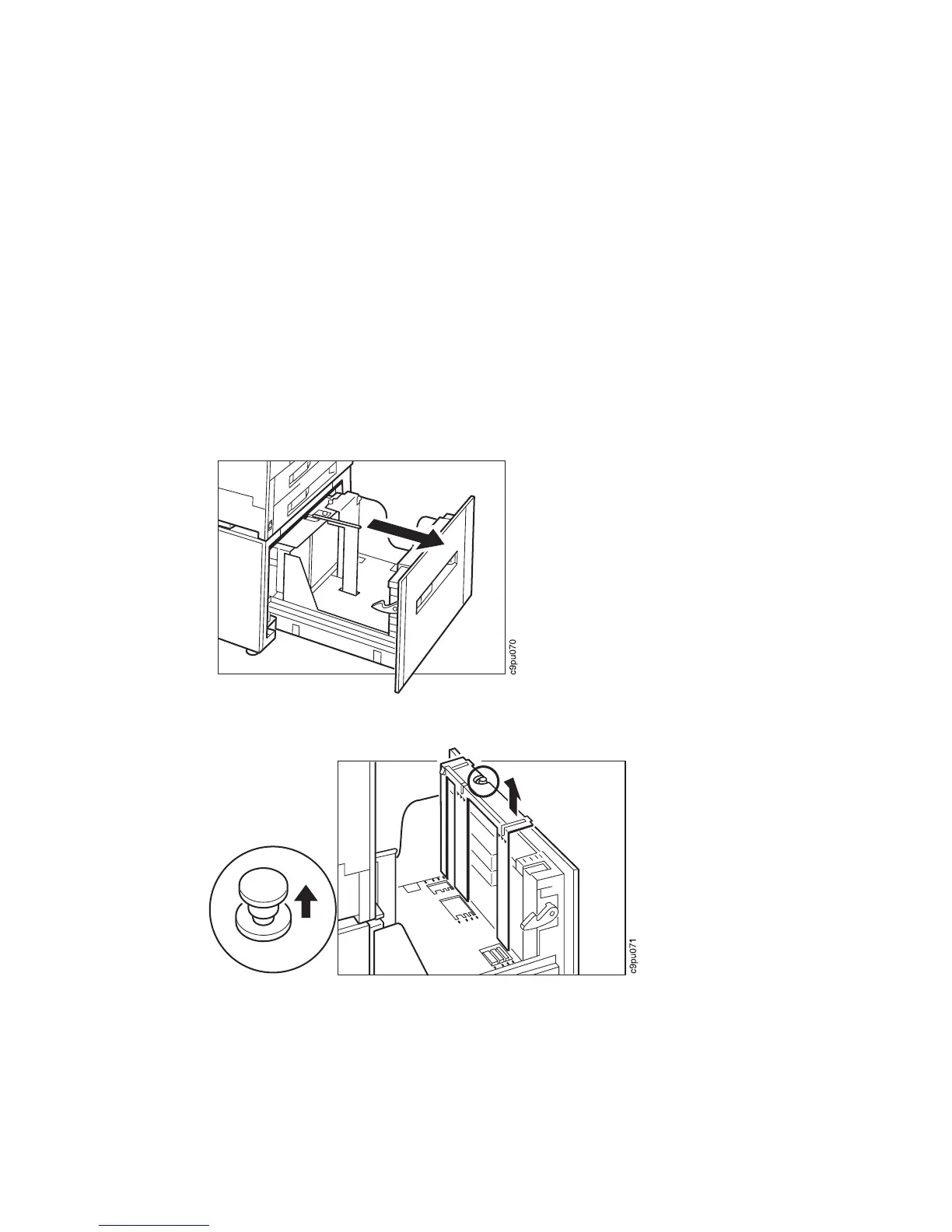

1. Grasp the handle, pull the handle up, and pull the drawer towards you.
2. Lift the pin to unlock the front paper guide. Lift up the front paper guide and set
aside.
3. Move the front paper guide to the desired paper size location. The top and bottom
slots are labeled with paper sizes. For instance, if you want to load letter size
paper, set the front paper guide in the top and bottom slots labeled LTR 11X17.
4. Make sure the front paper guide is set into the same slots on both the top and
bottom. Once the front paper guide is set in place, push down on the locking pin to
ensure the front paper guide is held in place.
92 User's Guide
