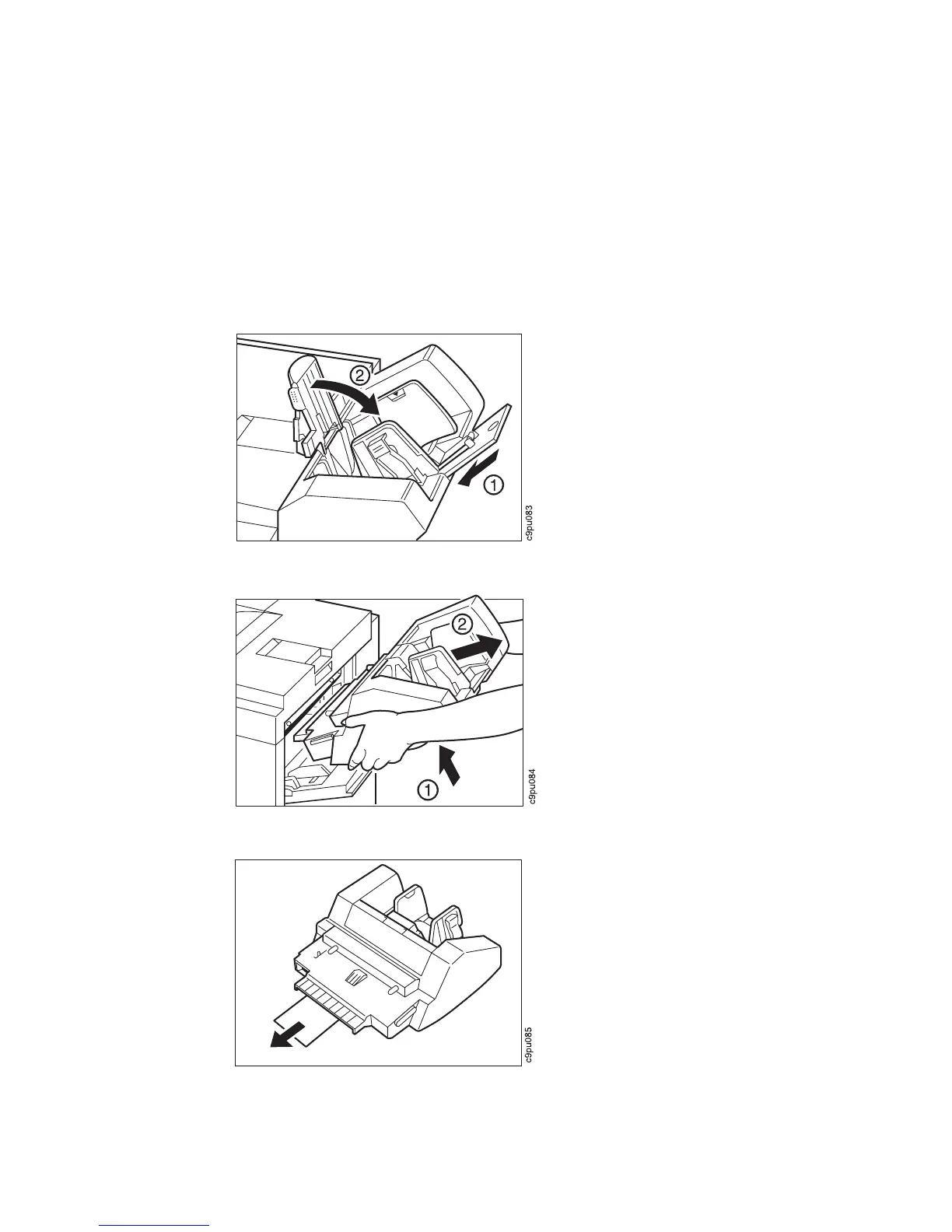

3. Push in the envelope pressure plate (1) and lower the envelope press plate (2).
4. Remove the envelope feeder by slightly raising the end of the feeder (1) and pull
the envelope feeder out towards you (2).
5. Remove jammed envelope(s). If an envelope is torn, make sure no paper is left in
the envelope feeder rollers.
6. Replace the envelope feeder.
Chapter 5. Clearing Paper Jams 125
