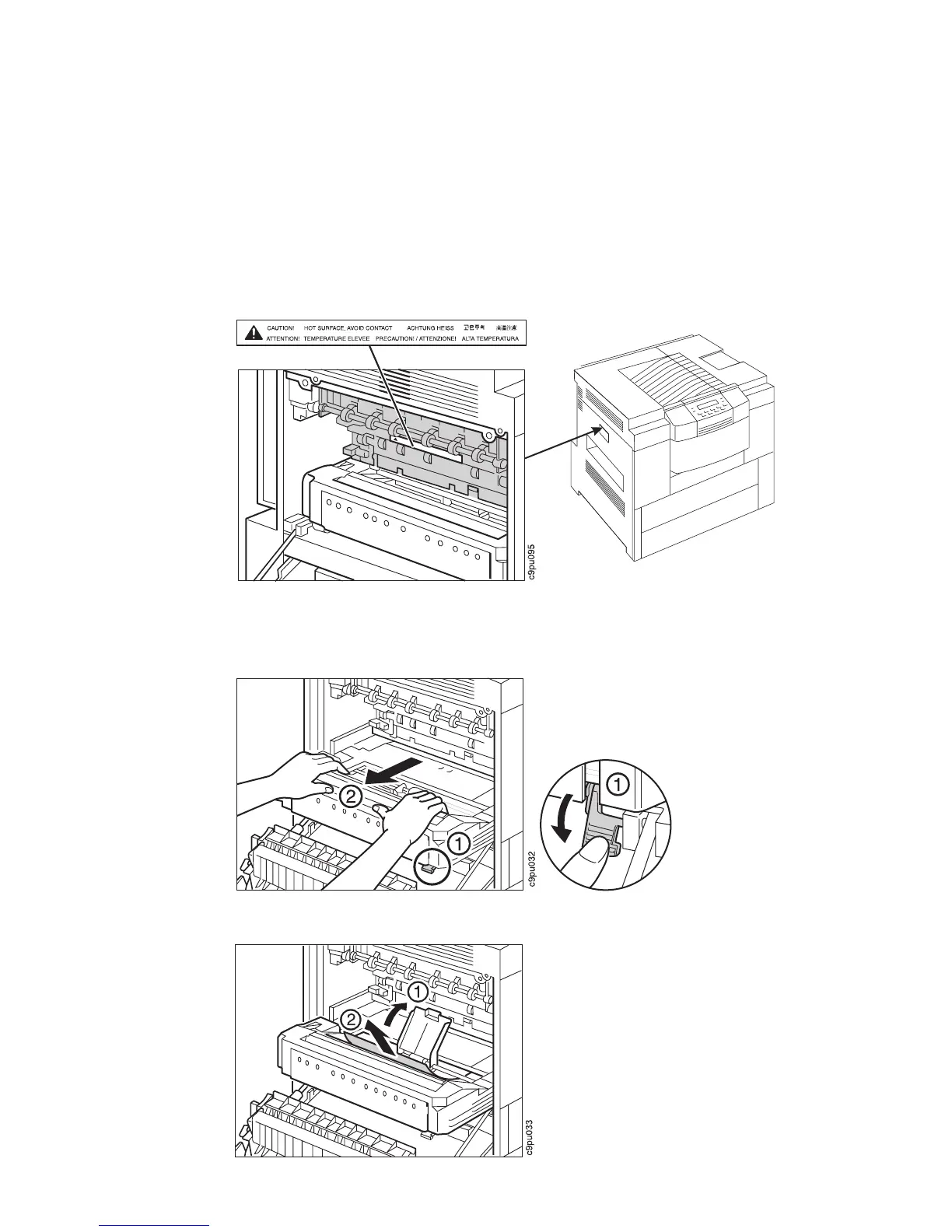

5. Press the green tab (1) down to unlock the duplex unit.
6. Using both hands, pull the duplex unit out until the green plate (2) can be placed in
a vertical position. The green plate must be placed in a vertical position to access
paper jams.
7. Lift up the green plate (1) and gently pull the paper towards you (2). After you
remove the paper, return the green plate (1) to its original position.
Chapter 5. Clearing Paper Jams 129
