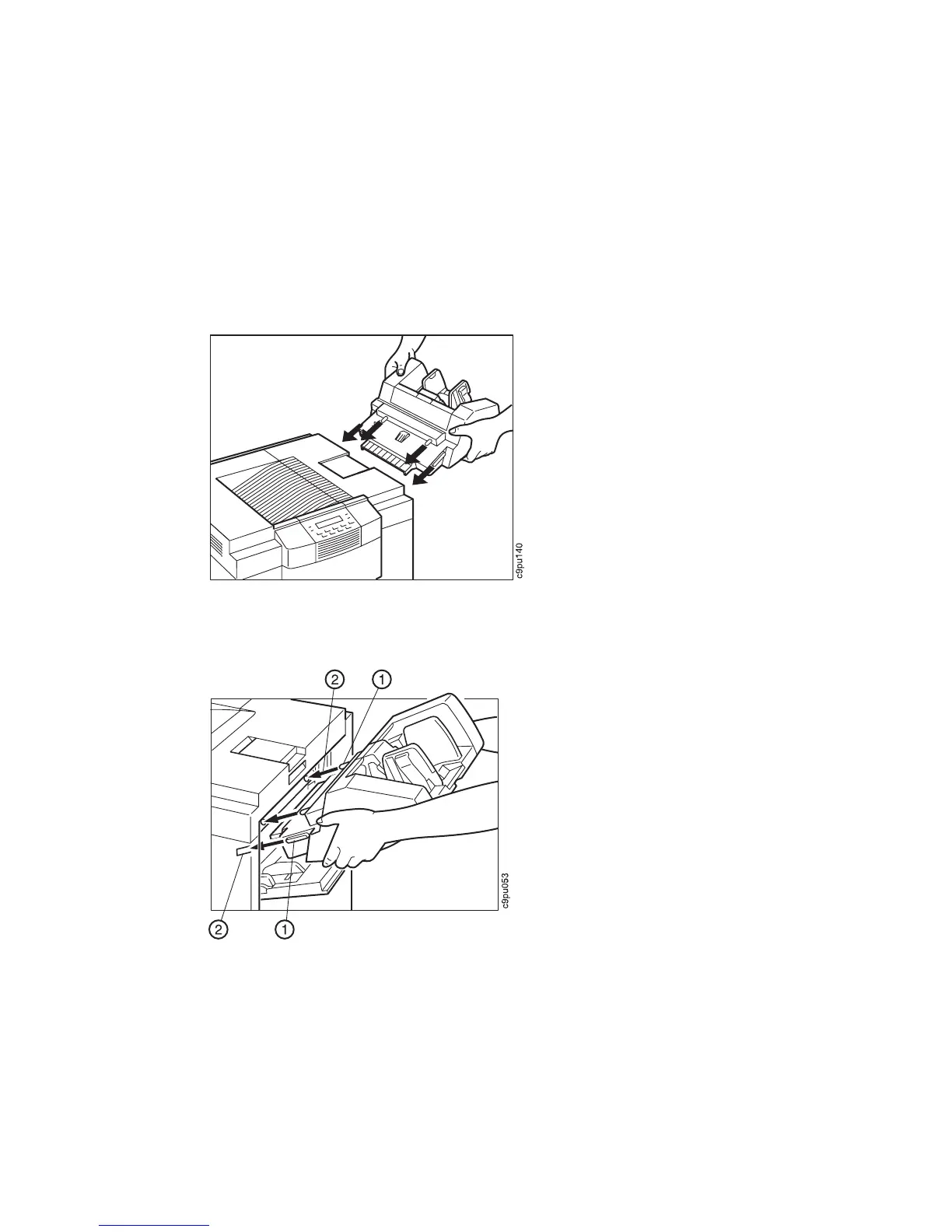

5. Align the envelope feeder with the printer as shown below:
6. Align the tabs (1) on the envelope feeder with the printer slots (2) by positioning
the envelope feeder at a slight angle. Once the envelope feeder is in position,
gently slide the envelope feeder into the printer until you hear a clicking sound
which means the envelope feeder is seated firmly in place.
7. Lift up the envelope pressure plate (1) and pull the extension tray (2) out.
170 User's Guide
