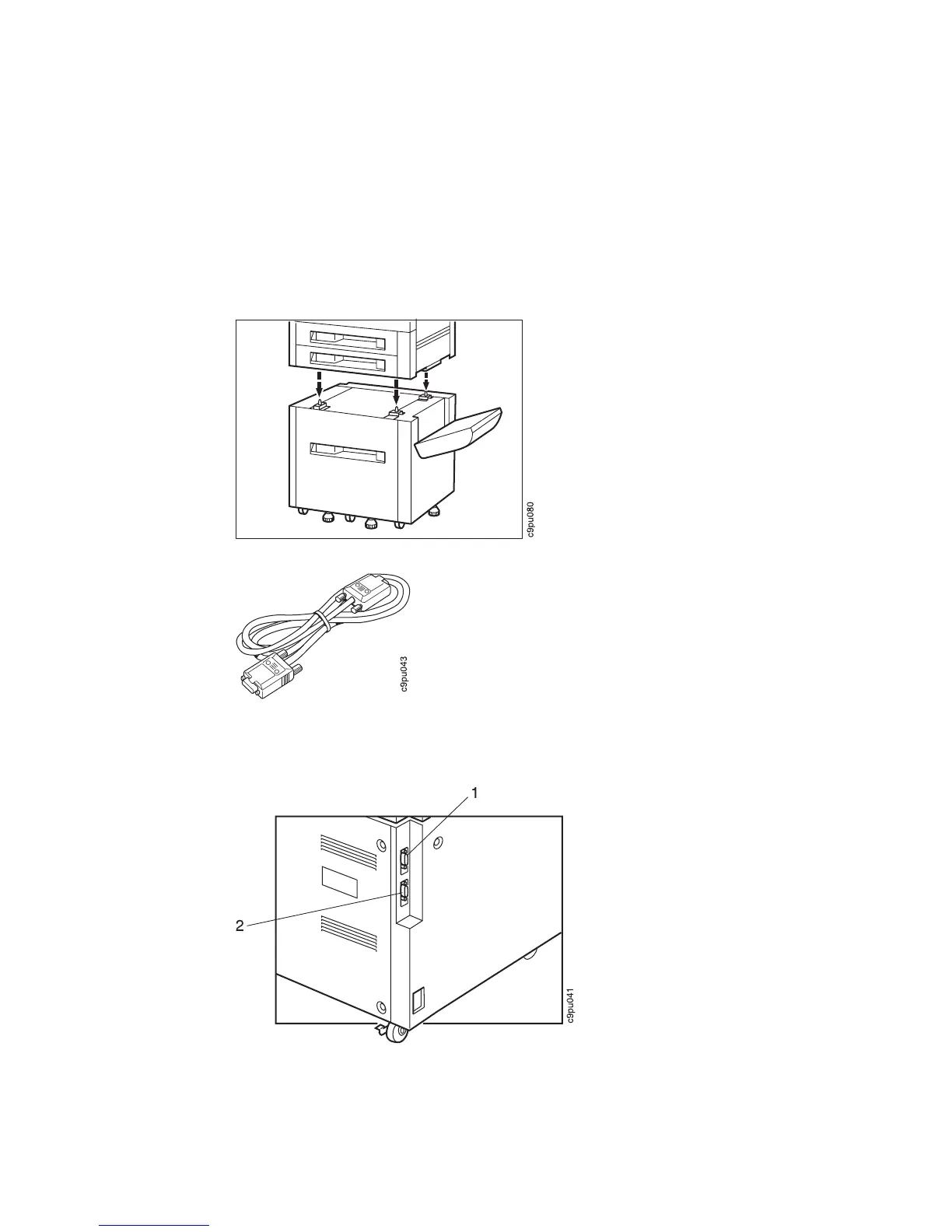

7. Locate the I/O cable that was shipped with the 2000-sheet input drawer.
8. The 2000-sheet input drawer has two I/O connections: an upper 15-hole and lower
14-hole port. The 15-hole port (1) is used to connect the 2000-sheet input drawer
to the options controller card (which is located on the controller card). The 14-hole
port (2) is used to connect the 2000-sheet finisher to the 2000-sheet input drawer.
9. The I/O cable has two connectors: 15-pin and 14-pin. The 15-hole connector is
plugged into the 2000-sheet finisher 15-pin port; the 14-pin connector is plugged
into the options controller card. Review the following illustration to determine the
difference between 15-pin and 14-pin connector. The cable connector labeled 15 is
15-pin connector; the cable connector labeled 14 is 14-pin connector.
Chapter 7. Installing Printer Options 177
