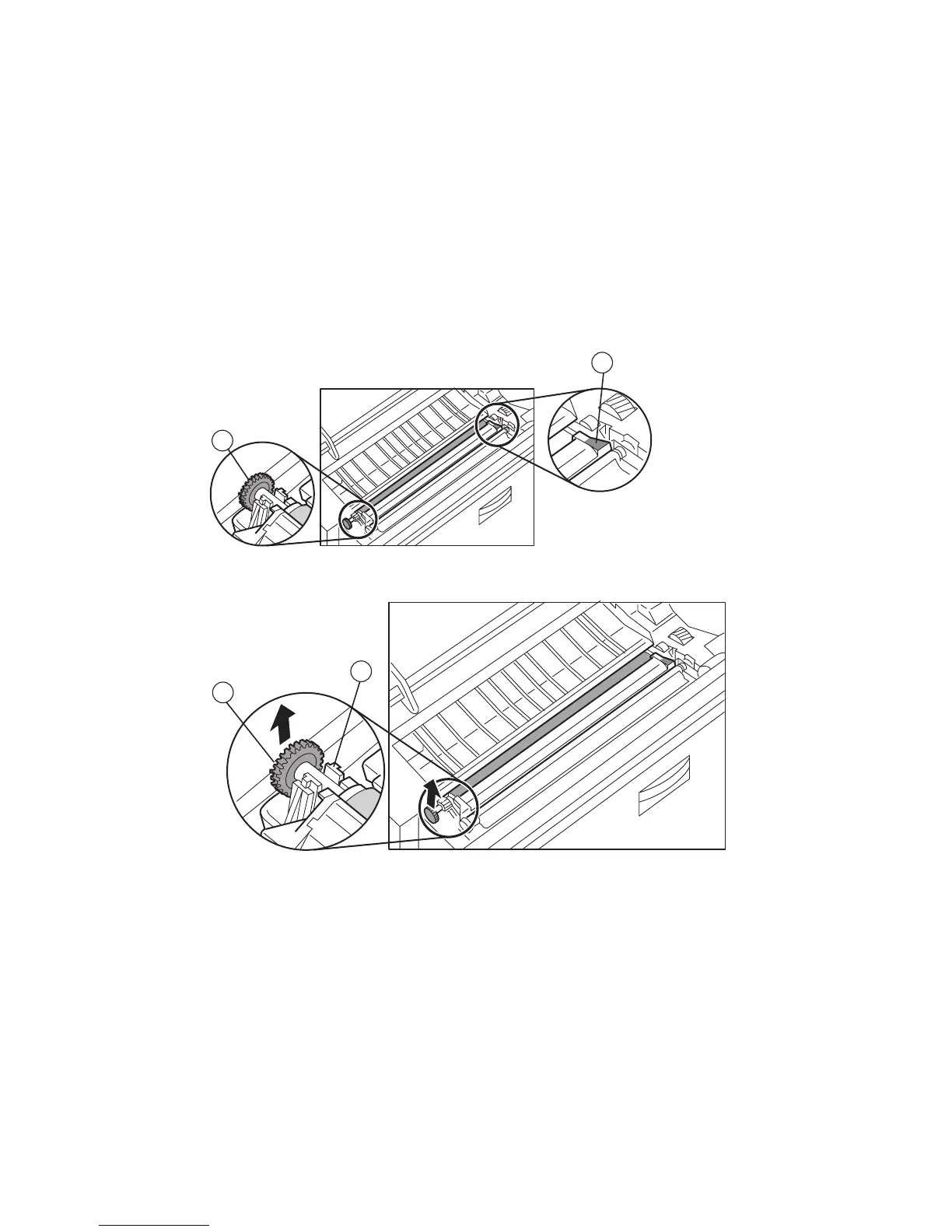

5. Hold the blue gear (1) with your left hand and the edge of the shield (2) with your
right hand.
c9pu250
2
1
6. With your left hand, lift up the blue gear (1) from its clip (2). Hold the blue gear
two or three inches above the clip.
c9pu251
2
1
7. Using both hands, slide the transfer charging roller assembly to the left to clear its
right mount (1). Remove the old transfer charging roller assembly.
