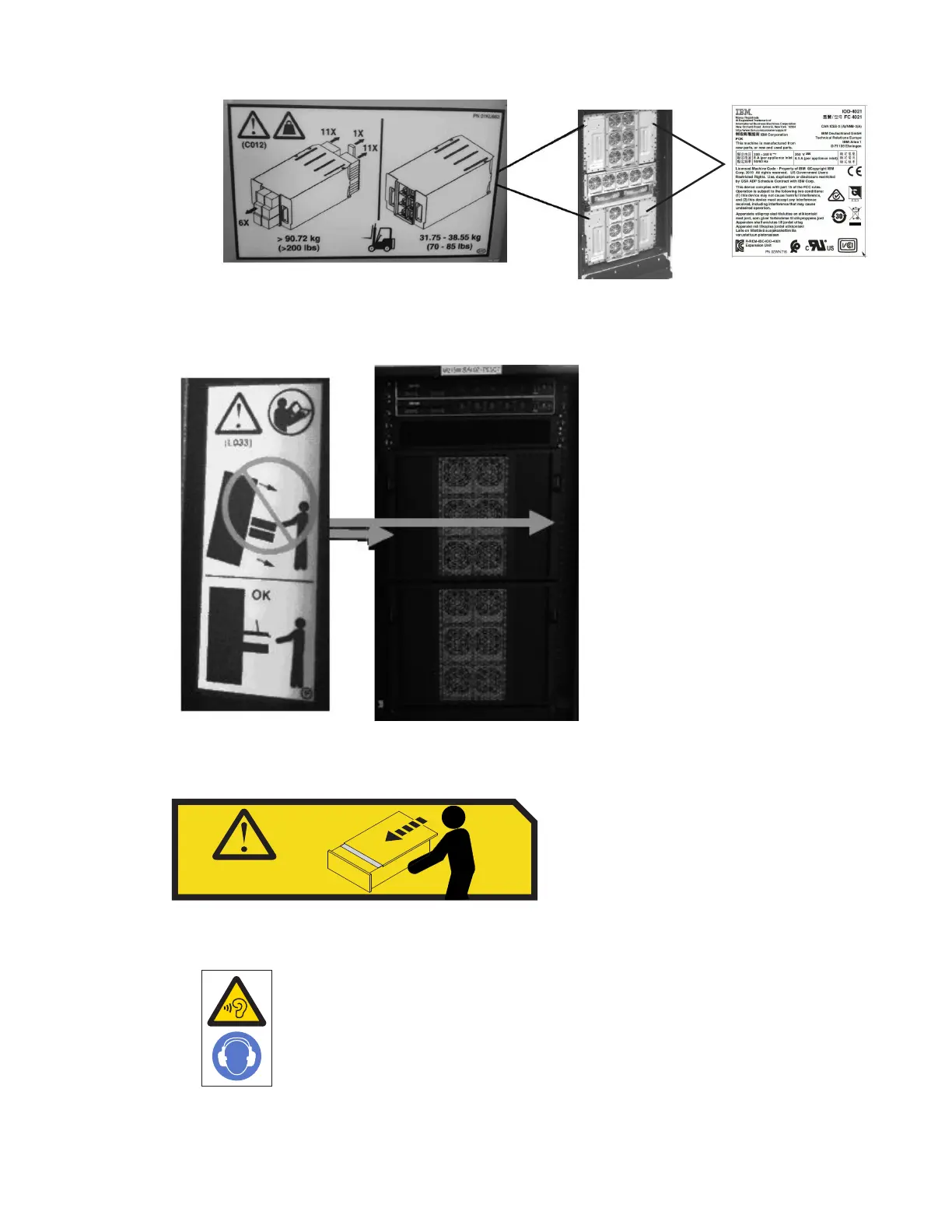

__ 3. Ensure that the label instructing you not to pull out multiple drawers at the same time appears on
the fr
ame as shown. These labels appear in several locations on the frame; next to the CPC drawer,
PCIe+ I/O drawers, and Support Elements.
__ 4. Ensure that the enclosure integrity label is in place and readable. The label (L031) ins
tructs you to
promptly reinstall all covers, bezels, lids, and/or doors immediately after service completion. This
label appears on the inside of the PCIe+ I/O, CPC, and BPA bezels.
__ 5. Ensure that the following labels are in place and readable.
__ •
Acoustic noise warning label (P/N 03GN949) - appears on the right side of every frame
__ • Acoustic noise warning label (
P/N 01KL320) - appears on the left side of every CPC drawer,
when the bezel is removed
Chapter 1. Safety inspection ENG-19
