C A A
, B F

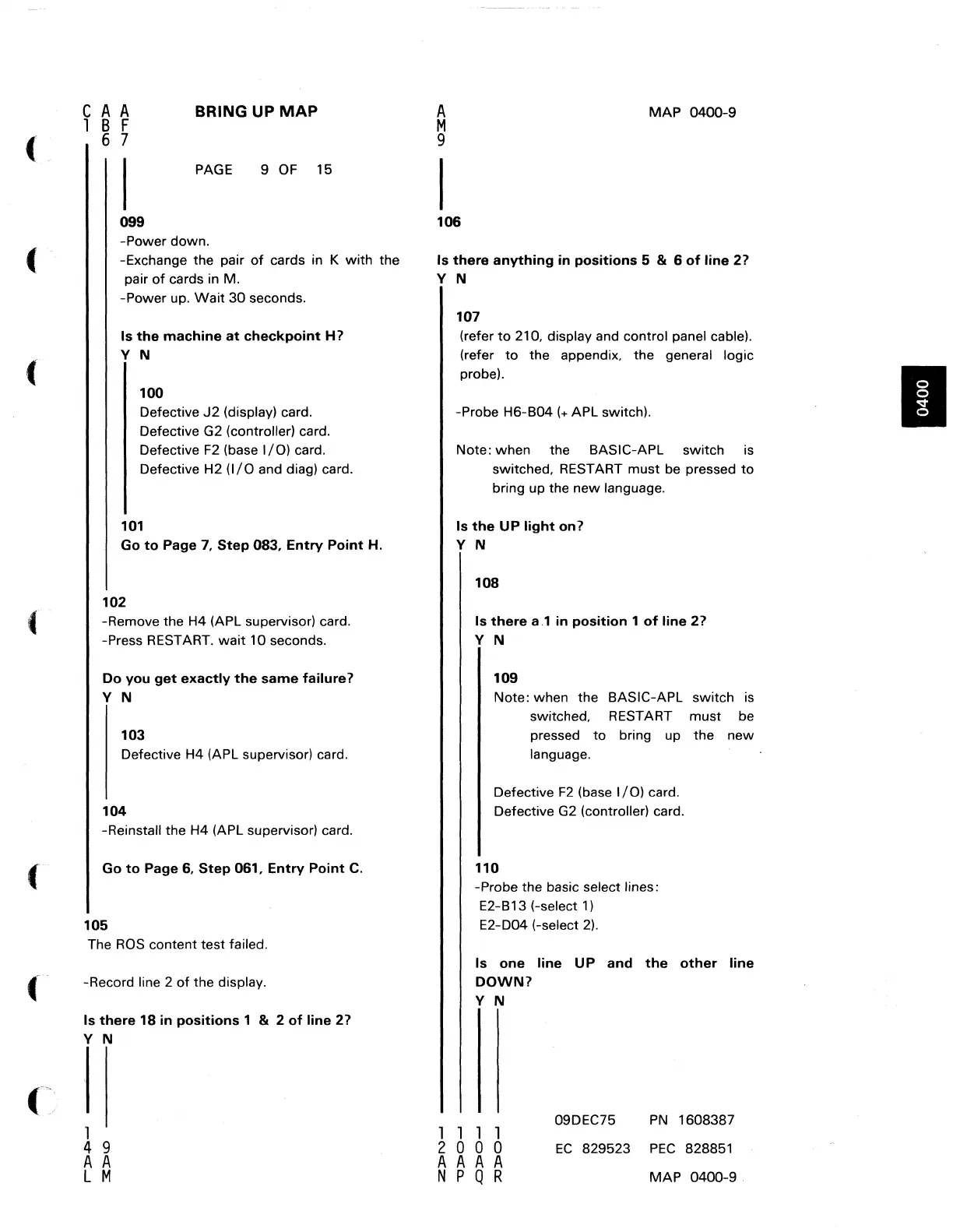

BRING
UP
MAP
6 7
PAGE 9 OF 15
099
-Power
down.
-Exchange the pair
of
cards in K
with
the
pair
of
cards in M.
-Power
up.
Wait
30
seconds.
Is
the
machine
at
checkpoint
H?
Y N
100
Defective
J2
(display) card.
Defective G2 (controller) card.
Defective
F2
(base
I/O)
card.
Defective
H2
(I/O
and diag) card.
101
Go
to
Page 7,
Step
083,
Entry
Point
H.
102
-Remove the
H4
(APL supervisor) card.
-Press RESTART.
wait
10 seconds.
Do
you
get
exactly
the
same
failure?
Y N
103
Defective H4 (APL supervisor) card.
104
-Reinstall the H4 (APL supervisor) card.
Go
to
Page 6,
Step
061,
Entry
Point
C.
105
The
ROS
content
test
failed.
-Record line 2
of
the display.
Is
there
18
in
positions
1 & 2
of
line
2?
Y N
1
4 9
A A
L M
A
M
9
MAP
0400-9
106
Is
there
anything
in
positions
5 & 6
of
line
2?
Y N
107
(refer
to
210, display and control panel cable).
(refer
to
the appendix, the general logic
probe).
-Probe
H6-B04
(+
APL switch).
Note:
when
the BASIC-APL switch is
switched, RESTART
must
be pressed
to
bring up the
new
language.
Is
the
UP
light
on?
Y N
108
Is
there
a,l
in
position
1
of
line
2?
Y N
109
Note: when the BASIC-APL
switch
is
switched, RESTART
must
be
pressed
to
bring up the
new
language.
Defective
F2
(base
I/O)
card.
Defective G2 (controller) card.
110
-Probe the basic select lines:
E2-B13 (-select
1)
E2-D04 (-select
2).
Is
one
line
UP
and
the
other
line
DOWN?
Y N
, , 1 ,
2 0 0 0
A A A A
N P
Q R
09DEC75
PN
1608387
EC
829523
PEC
828851
MAP
0400-9
I
To Next Page
