Installing Internal Drives
If the fan assembly is installed, you must remove it before you can
install the backplane in the rear of bank D.

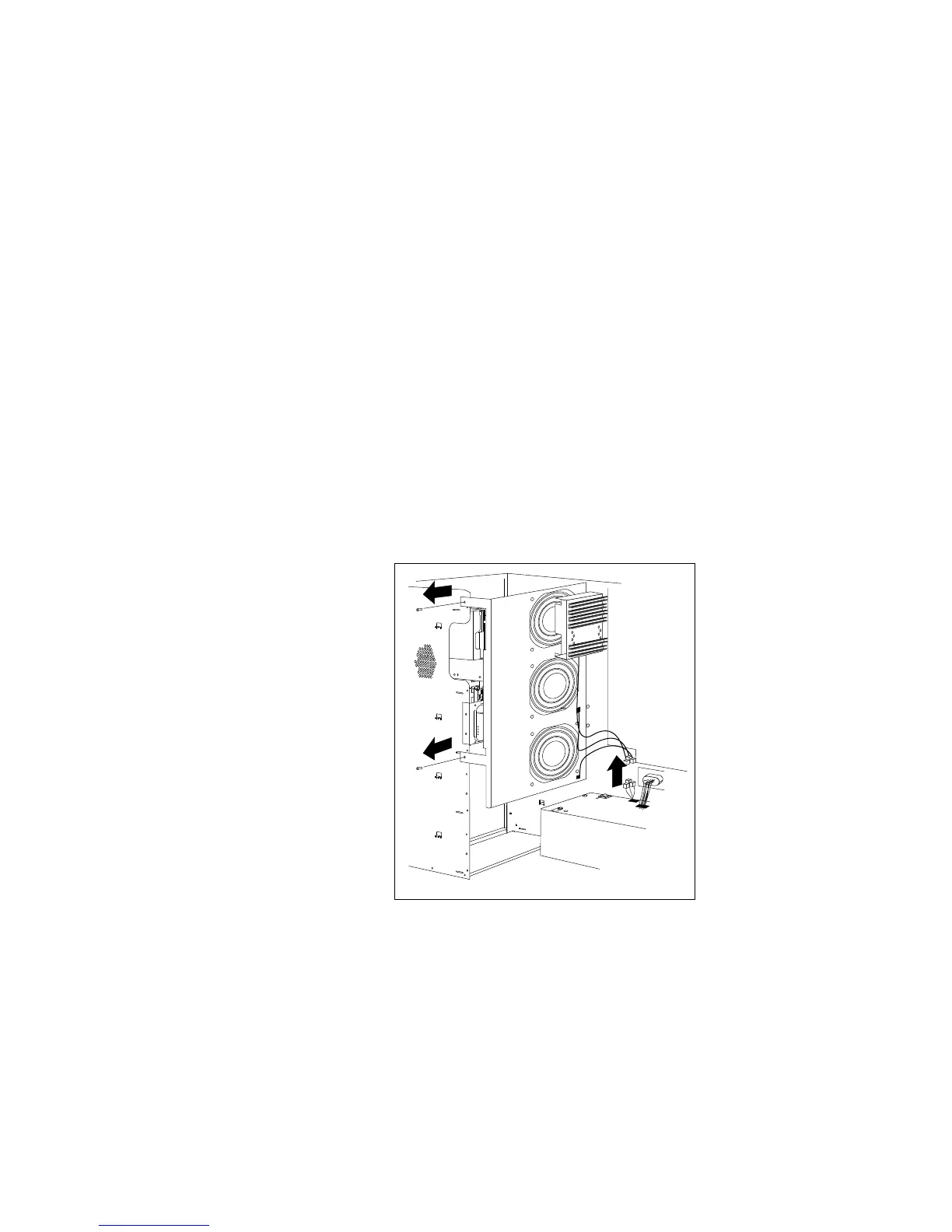

1. Disconnect the fan assembly cable from the fan bracket.
Attention: To avoid damage and ensure proper server
operation, handle the fan assembly carefully.
2. Remove the two screws that hold the fan assembly in place.
3. Remove the fan assembly by sliding it up and pulling it out.
Chapter 5. Installing Options 223
