Changing Jumper Settings

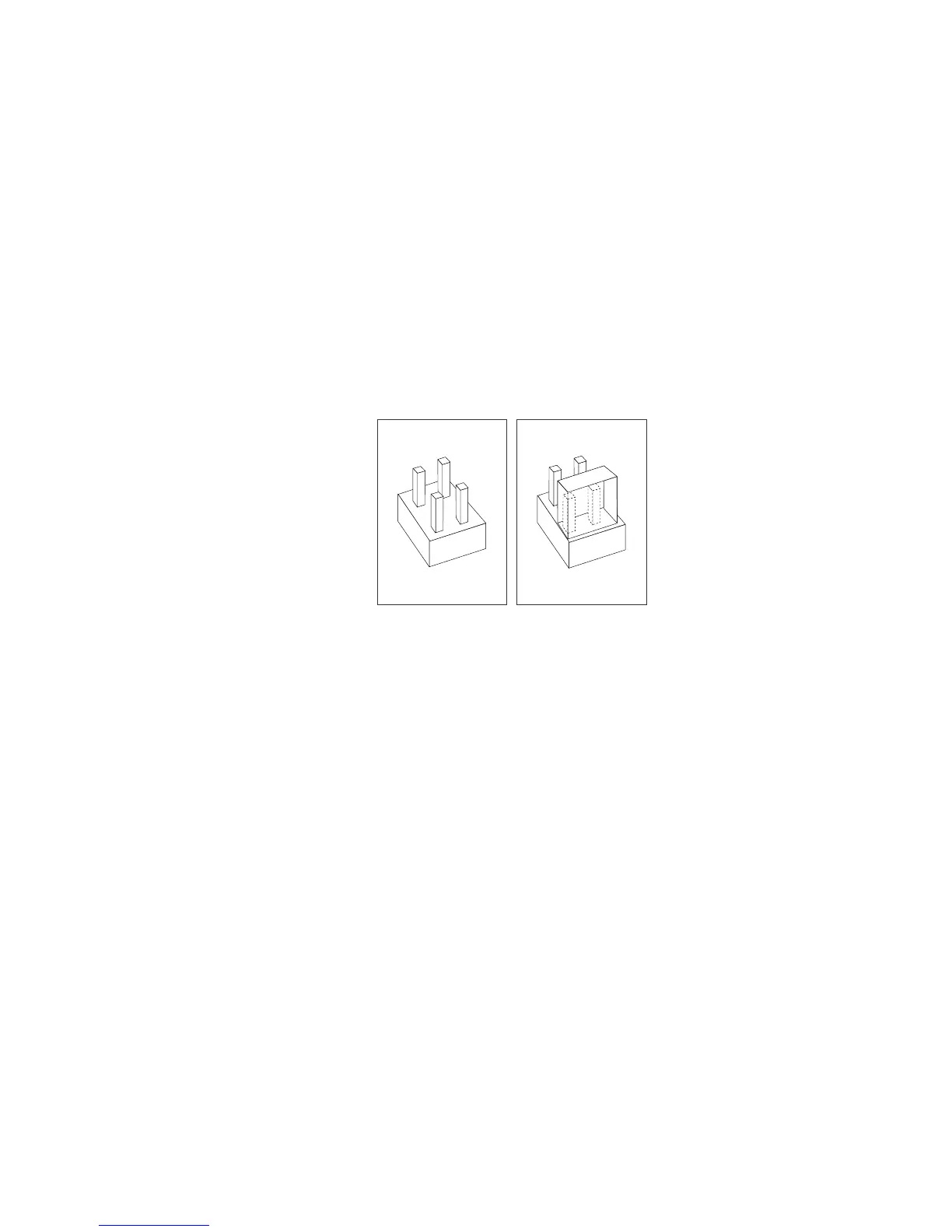

The following illustration shows a jumper being placed over two
pins on a four-pin block.
To change a jumper setting:
1. Lift the jumper straight up off the pin block.
2. Slide the jumper down over the correct pins.
250 PC Server 520 User's Handbook for PCI/EISA
