4. Locate the hardware mounting kit and the two mounting plates. Refer to Figure 5 on page 7 when
reviewing the contents of the hardware mounting kit. The hardware mounting kit contains the
following items:
• 4 Rack-mounting bolts
• 4 Thin washers
• 8 Plastic isolator bushings
• 4 Thick washers
• 4 Spacers
5. If you are installing an AC-powered rack, temporarily install the lower plastic isolator bushings to
help you locate the mounting locations for the mounting plate. After the mounting plate has been
correctly located, remove the lower plastic isolator bushings.

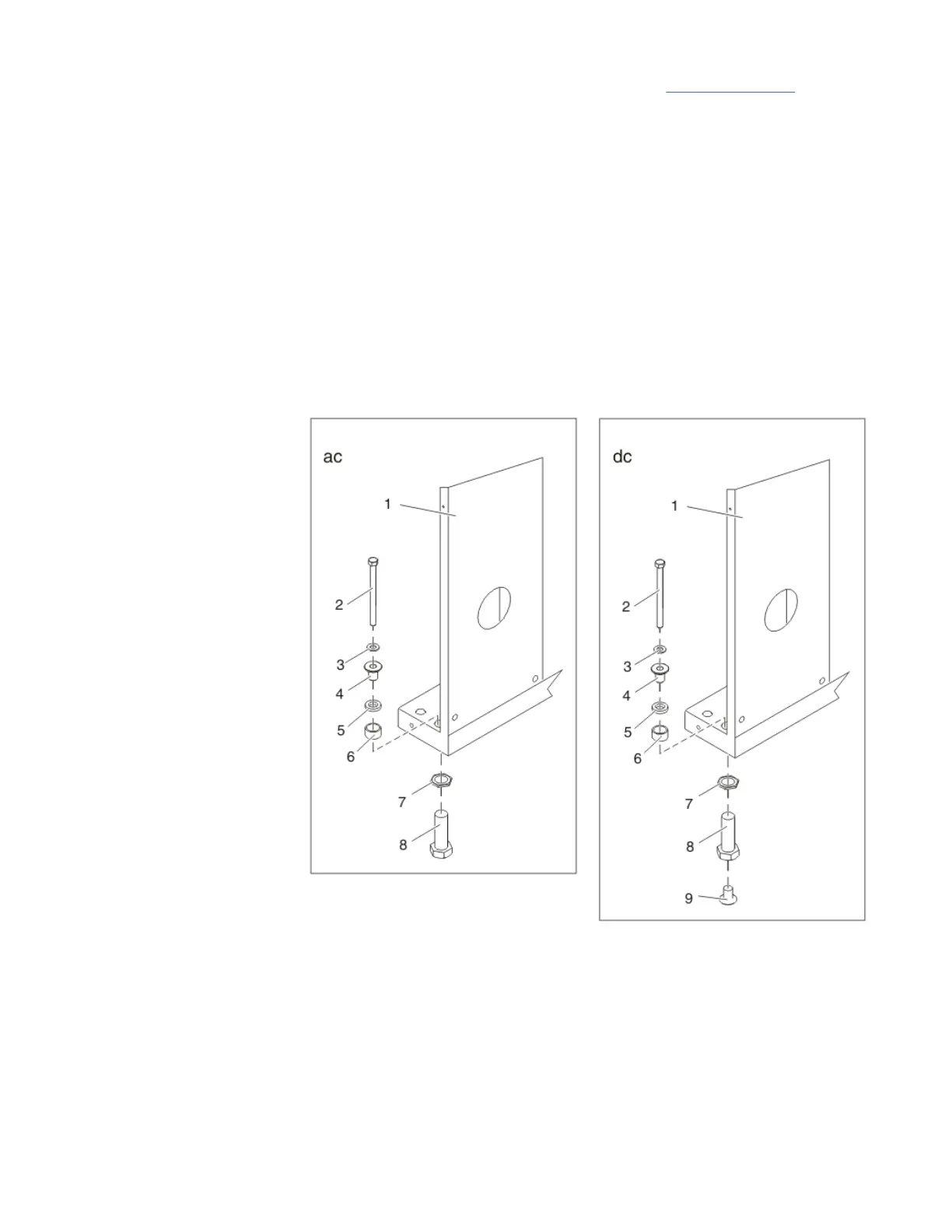

Figure 5. Rack bolt-down hardware
Racks and rack features
7
