• Four thin washers
• Eight plastic isolator bushings
• Four thick washers
• Four spacers
5. If you are installing an AC-powered rack, temporarily install the lower plastic isolator bushings to
help you locate the rack-mounting plate. After you have located the mounting plate, remove the
lower plastic isolator bushings.

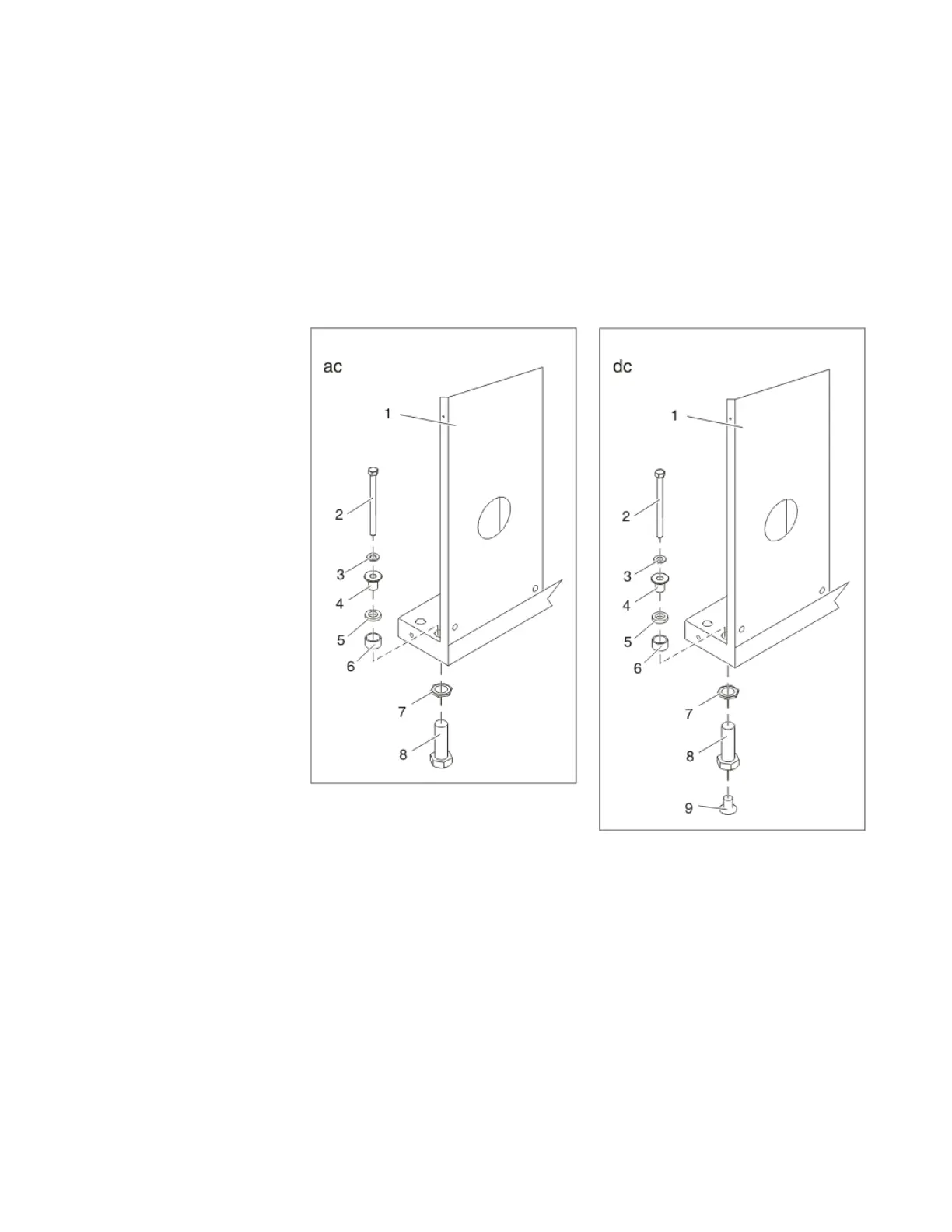

Figure 12. Rack bolt-down hardware
Item
Description Item Description
1 Rack chassis 7 Jam nut
2 Rack-mounting bolt 8 Leveling foot
16 Power Systems: Racks and rack features
