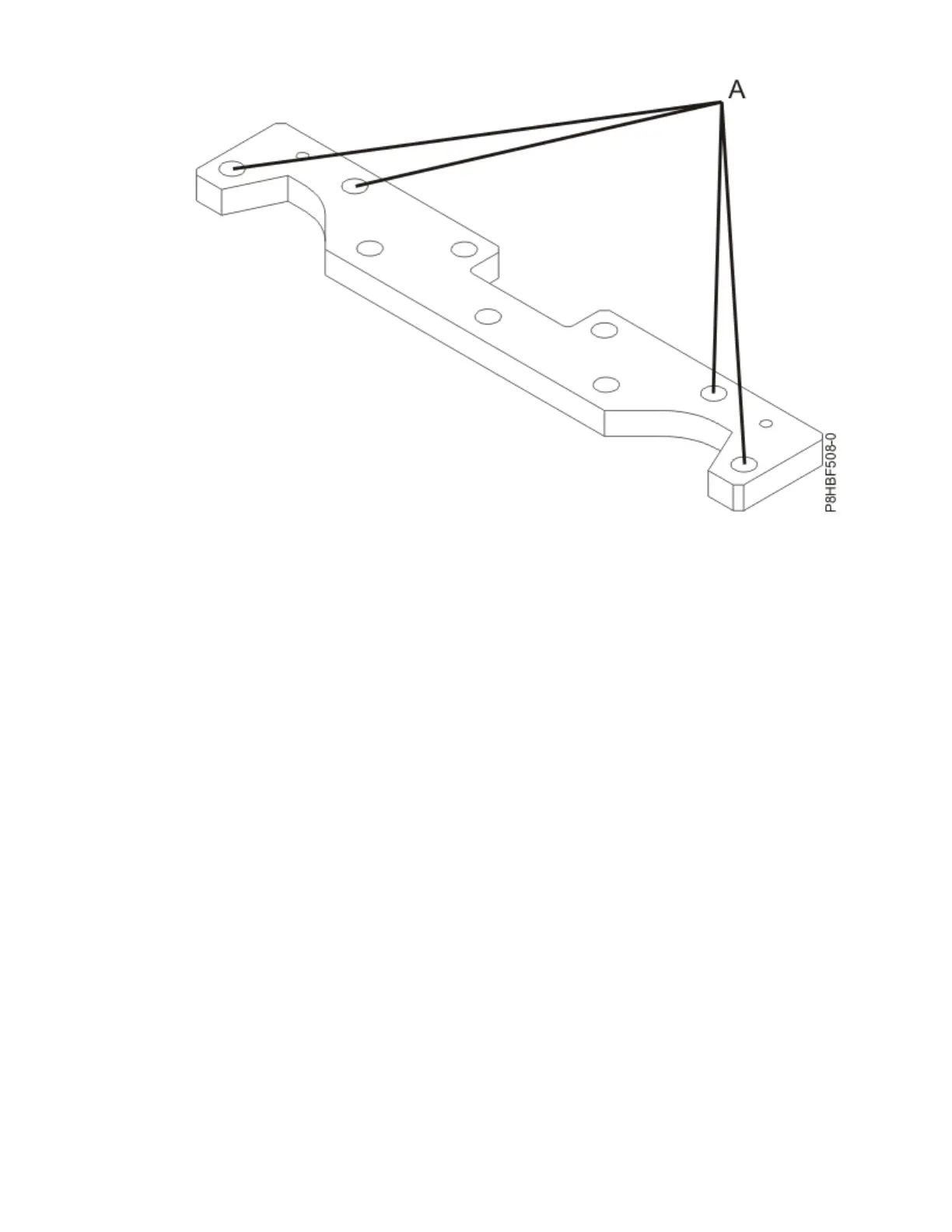

Figure 14. Recommended bolt-down locations for the rack with the X-brace
Note: The quantity, location, size and type of concrete anchors must be determined by the
Professional Engineer or the mechanical contractor performing the rack-mounting plate installation.
28. Transfer the locations of the anchor bolt holes (exclude the clearance holes drilled for the rack-
mounting bolts) from the raised-floor panel to the concrete floor directly beneath, and mark the hole
locations on the concrete floor.
29. Drill holes in the concrete floor to secure the anchor bolts.
30. If the raised-floor panels were removed, position the raised-floor panels back into position over the
anchor bolt holes.
31. Position the front rack-mounting plate within the marked area on the raised-floor panel.
32. Using your anchoring method, secure the front rack-mounting plate on top of the raised floor and
through to the concrete floor, but do not tighten.
33. Replace all raised panels that are required to position the rack over the front mounting plate.
Racks and rack features
19
