The Multiaccess Enclosure has a number of light-emitting diodes (LEDs) that
indicate how the unit is functioning.
SAC Card
SAC Card LEDs
(Green and Yellow)
System Card
Power Supply Adapter Card

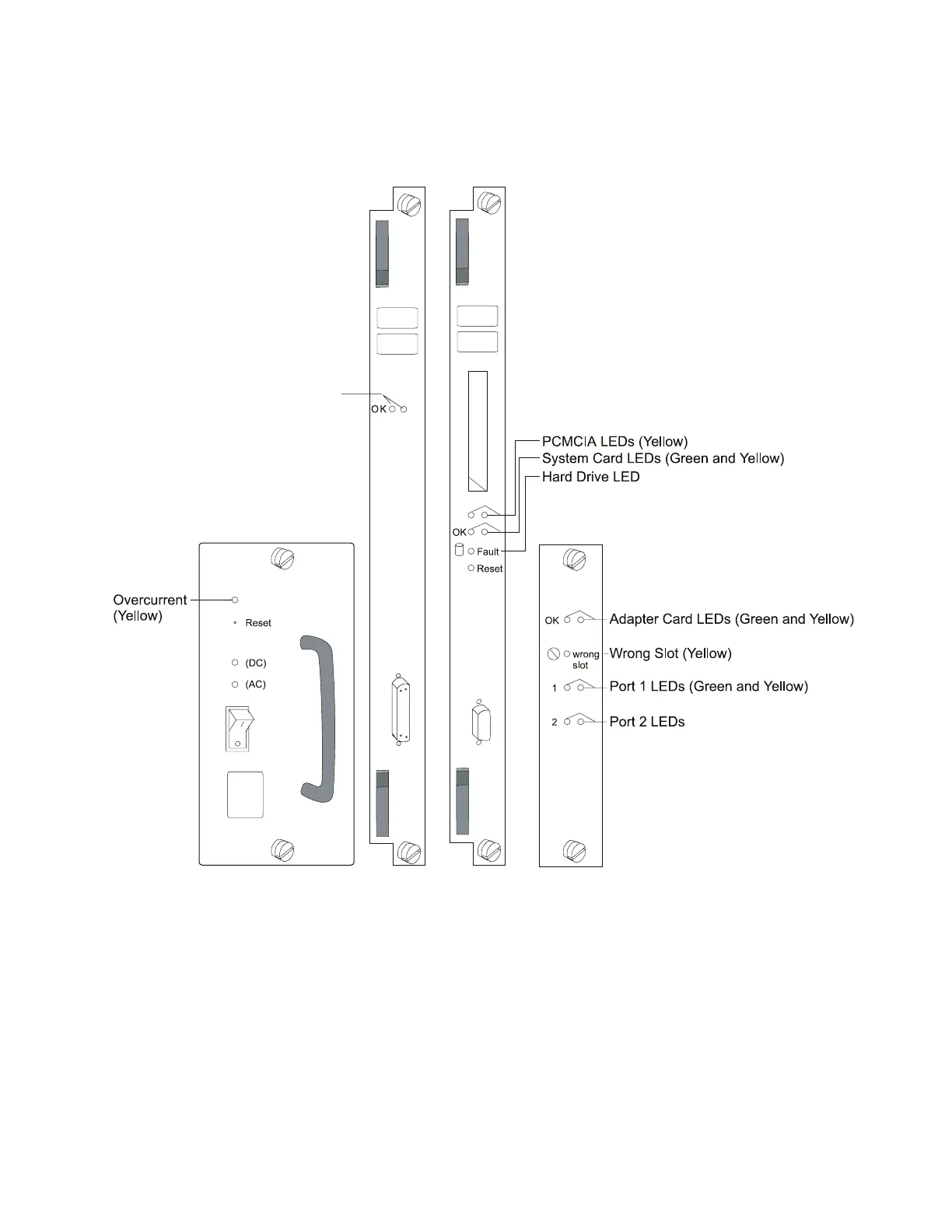

Figure 4-3. Power Supply, System Card, SAC card, and Adapter Card LEDs
7 Update the Vital Product Data:
a From the '3746-9x0 Menu', in Multiaccess Enclosure (MAE)
Management, double click on ASCII console.
Chapter 4. Multiaccess Enclosure FRU Exchange 4-11
