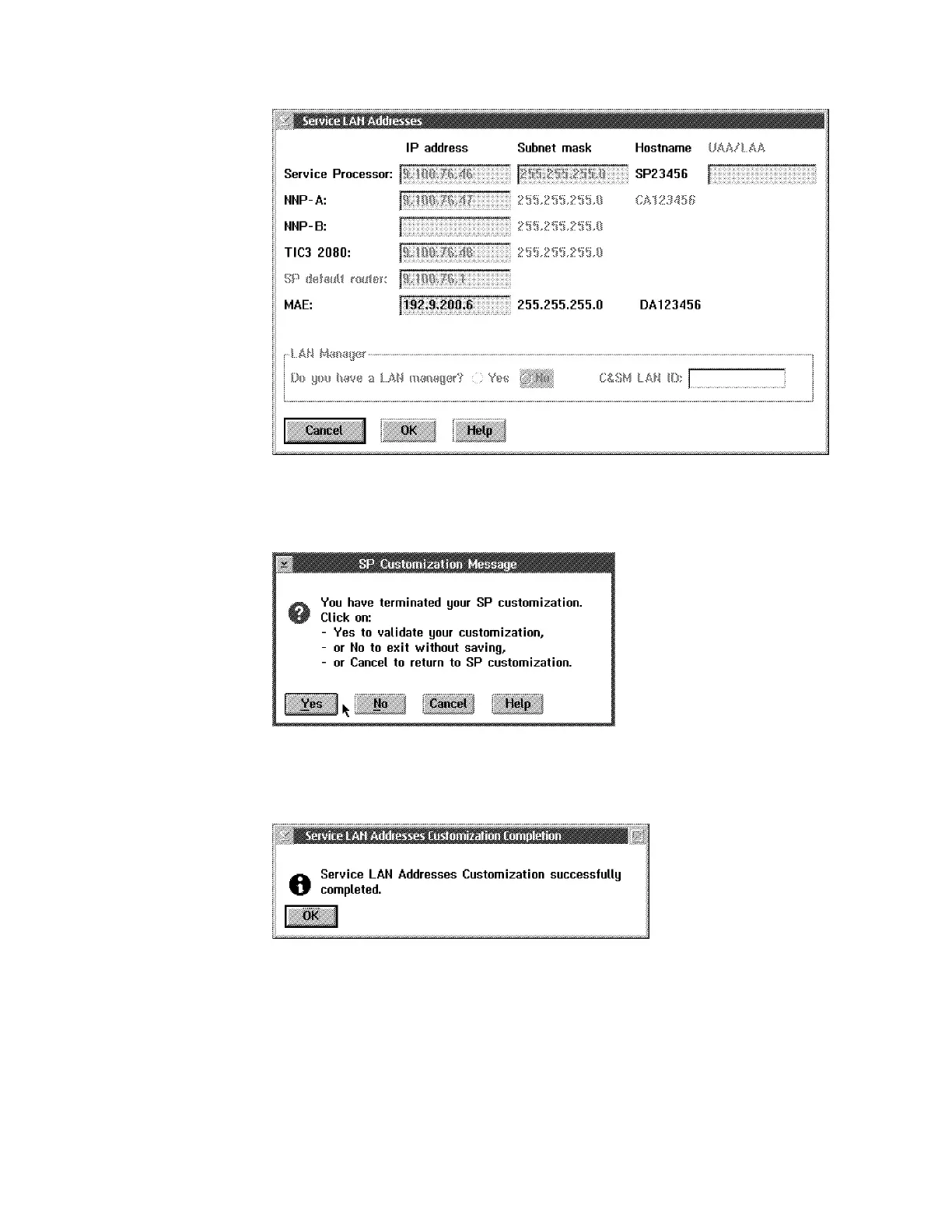

Figure 4-11. Service LAN Addresses
e Click on Yes to record your parameters.
Figure 4-12. SP Customization Message
f When completed, click on OK.
Figure 4-13. SP Customization Completed
g The MAE code is now being installed (it takes about 10 mn), when
completed click on Close.
Note: Verify that the MAE link icon is green.
12 Activate CCM Configuration:
a Return to the 3746-9x0 menu,
Chapter 4. Multiaccess Enclosure FRU Exchange 4-21
