4. To make the MAE easier to lift, remove the fan tray and each power
supply.

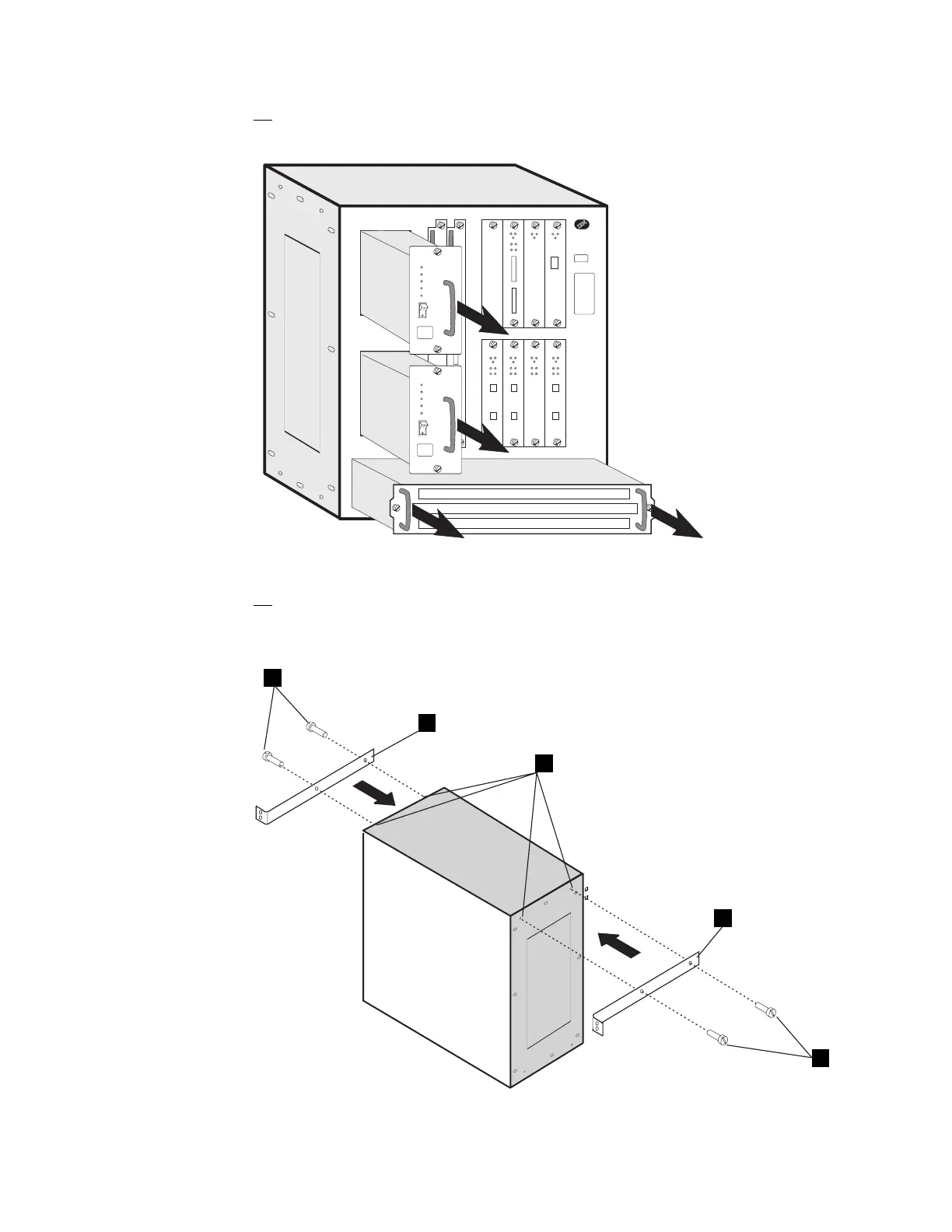

Figure 1-3. Fan Tray and Power Supply Removal.
5. Refer to Figure 1-4, remove the four screws .1/ installed on the MAE
frame, then install on the left and right side of the MAE two brackets .2/
(PN 0782961) using four screws .3/ (PN 1621191).
3
2
2
1
3
Figure 1-4. MAE Brackets Installation
1-6 3746-9X0: MAE Installation and Maintenance
