Dual ac Outlet Distribution Box
1. Connect the power cords .8/ (PN 58G5783) from the MAE power supply to
the plugs of the ac outlet distribution box as shown in the figure
Figure 1-16.
F2F2
F1F1
J8J8
J7J7
J6J6
J5J5
J4J4
J3J3
J2J2
J1J1
Other Options
(for example
Ethernet Bridge)
Other Options
(for example
Ethernet Bridge)
Other Options
(for example
Ethernet Bridge)
AC InputAC Input
Optical Disk Drive, CD-ROM Drive or RSF Modem (7858)
Display
Network Node Processor A
Network Node Processor B
Service Processor
Multiaccess Enclosure
1st Power Supply
Multiaccess Enclosure
2nd Power Supply

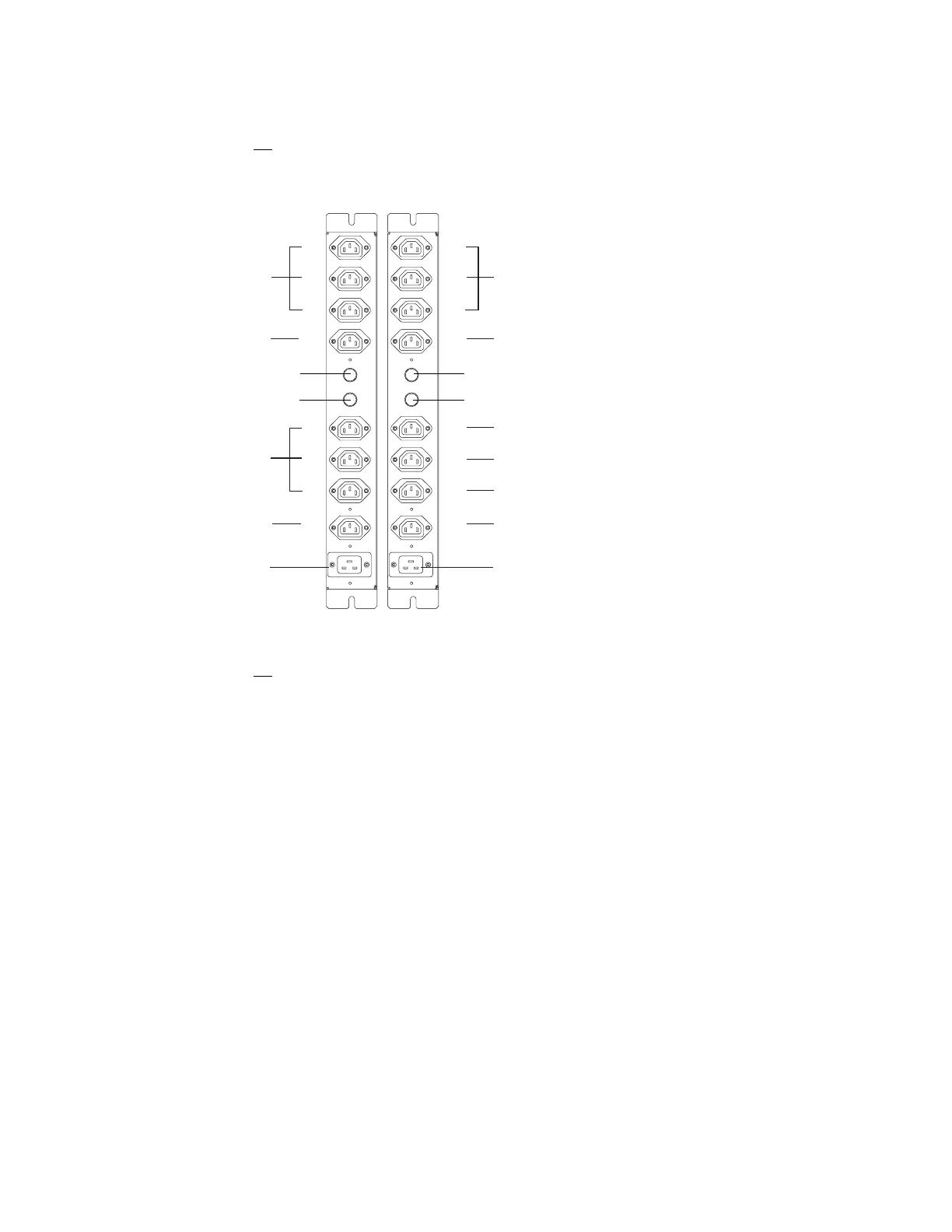

Figure 1-16. MAE Power Plugging on Dual ac Outlet Distribution Boxes
2. According to the plugging sheets, connect the external cables from slot 2 to
8 of the MAE.
Go to “Step 4 - Installing the SIE Cassette in the 3746-9X0” on page 1-15
