IBM 9008-22L Site And Hardware Planning

Notes:
v No cascading allowed for the 5887 storage drawer.
v The 5887 storage drawers are connected to same numbered port on each adapter.
v HD AA cable is required.

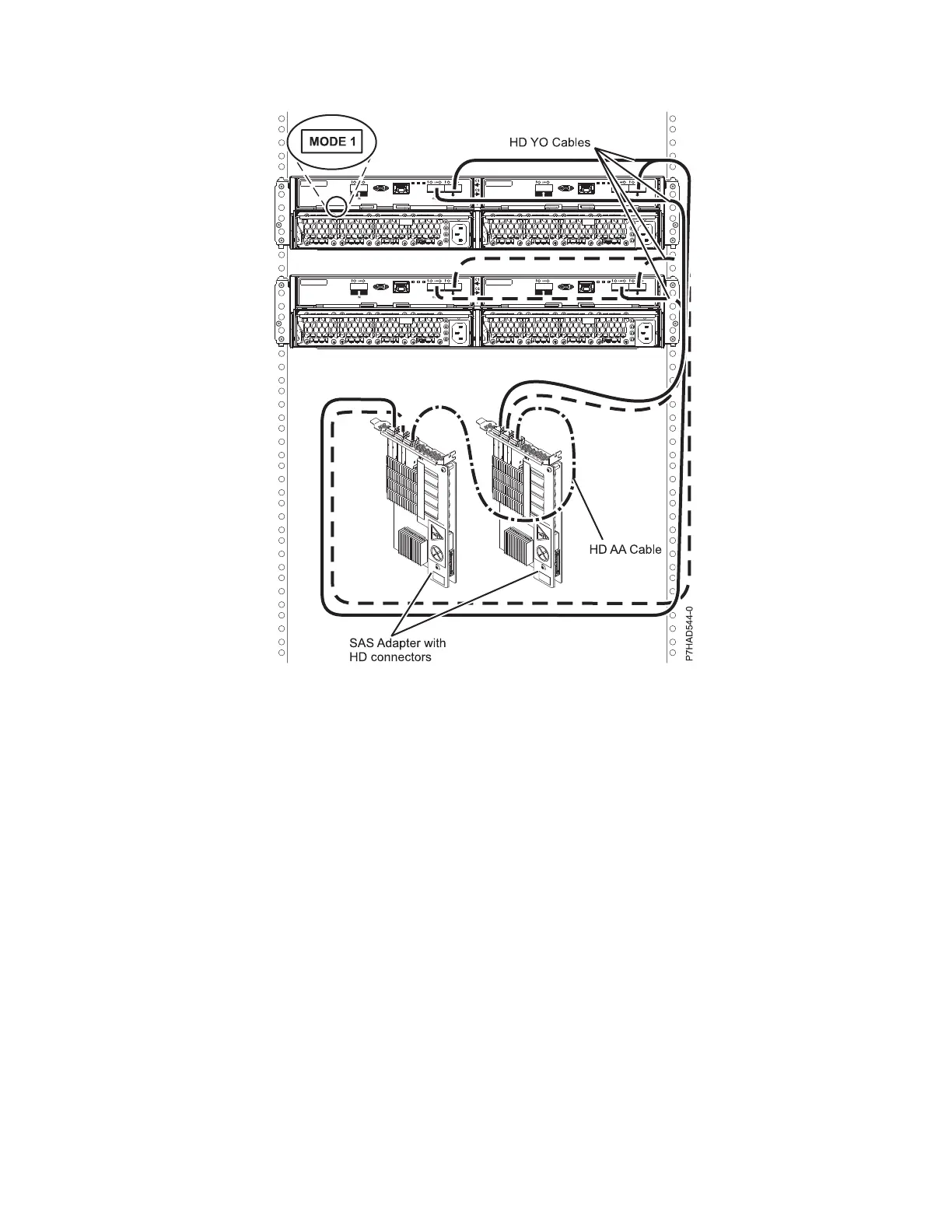

Figure 74. Two RAID SAS adapters with HD connectors to two disk expansion drawer in a multi-initiator HA mode
Site and hardware planning 143
