Cabling under the floor
Cables can be routed straight down through the side channels of the rack or routed towards the center of
the opening.
Cabling overhead
Front and rear cable access openings that are on the top of the rack cabinet allow cables to be routed up
and out of the rack. Cable access covers on the rear are adjustable by loosening the side screws and
sliding the covers forward or backward. Because of the smaller size of the cable openings in front, cables

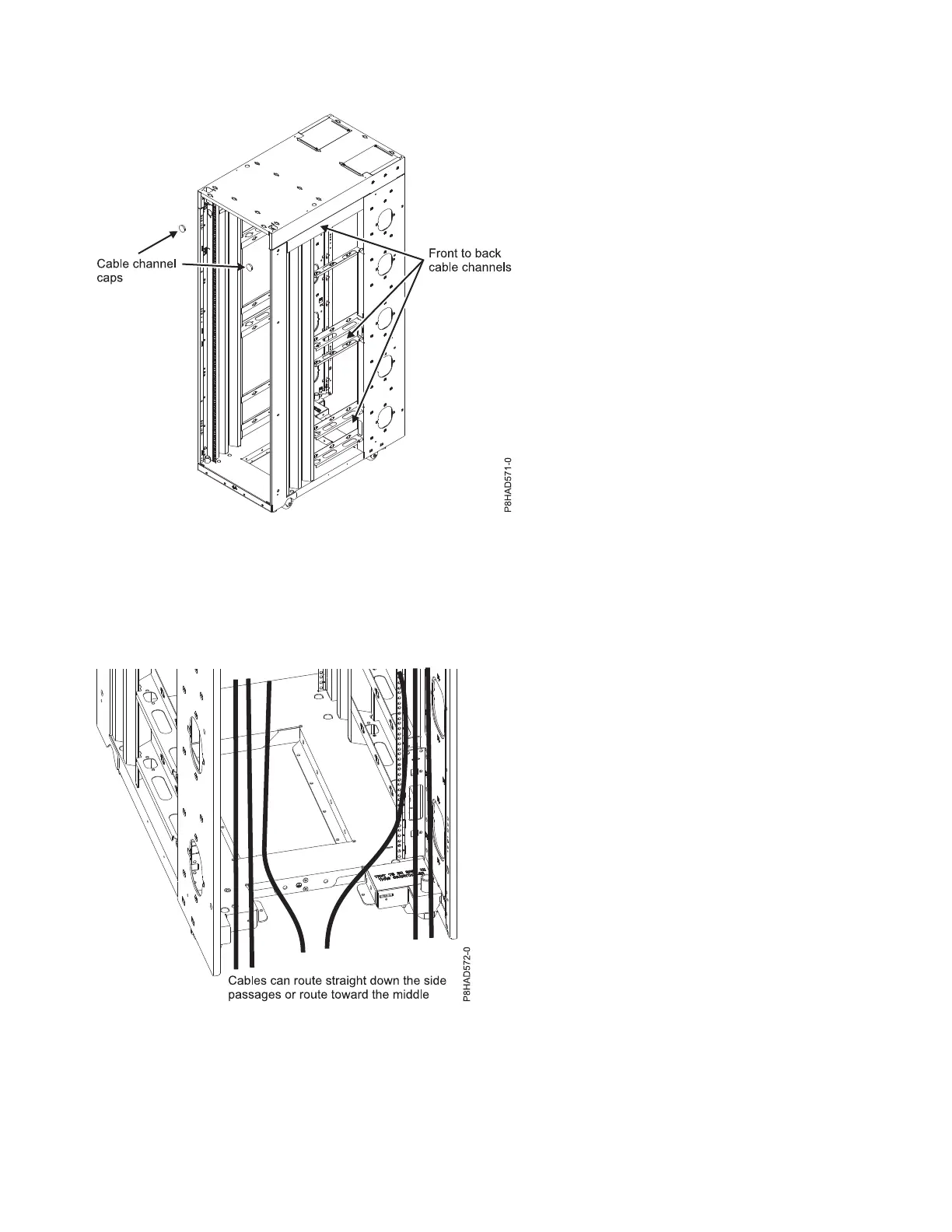

Figure 37. Cabling within the rack
Figure 38. Cabling under the floor
66 Site and hardware planning
