Note:
• No cascading allowed for the 5887 storage drawer.
• The 5887 storage drawers are connected to same numbered port on each adapter.

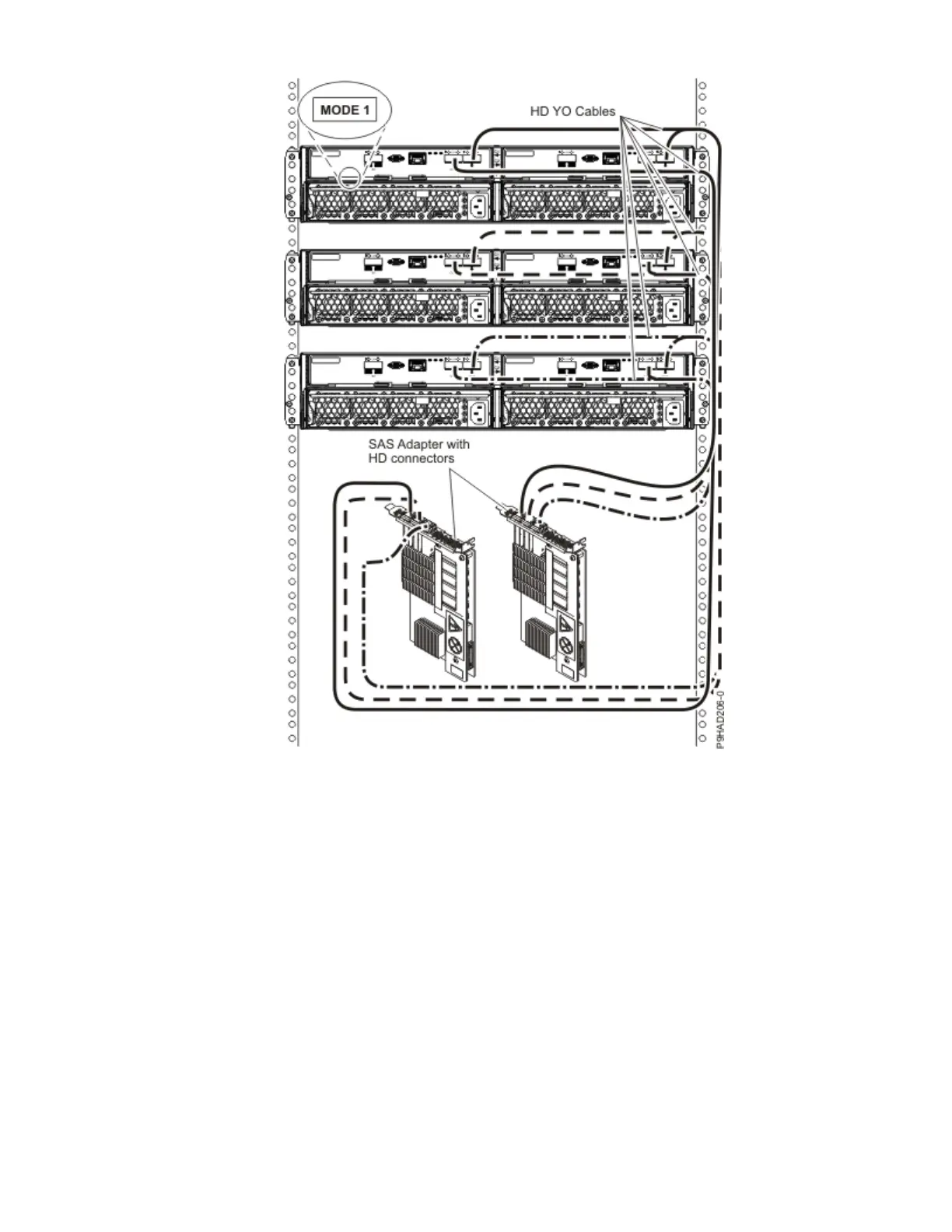

Figure 45. Two RAID SAS adapters with HD connectors to three disk expansion drawers in a multi-initiator
HA mode
Site and hardware planning
121
