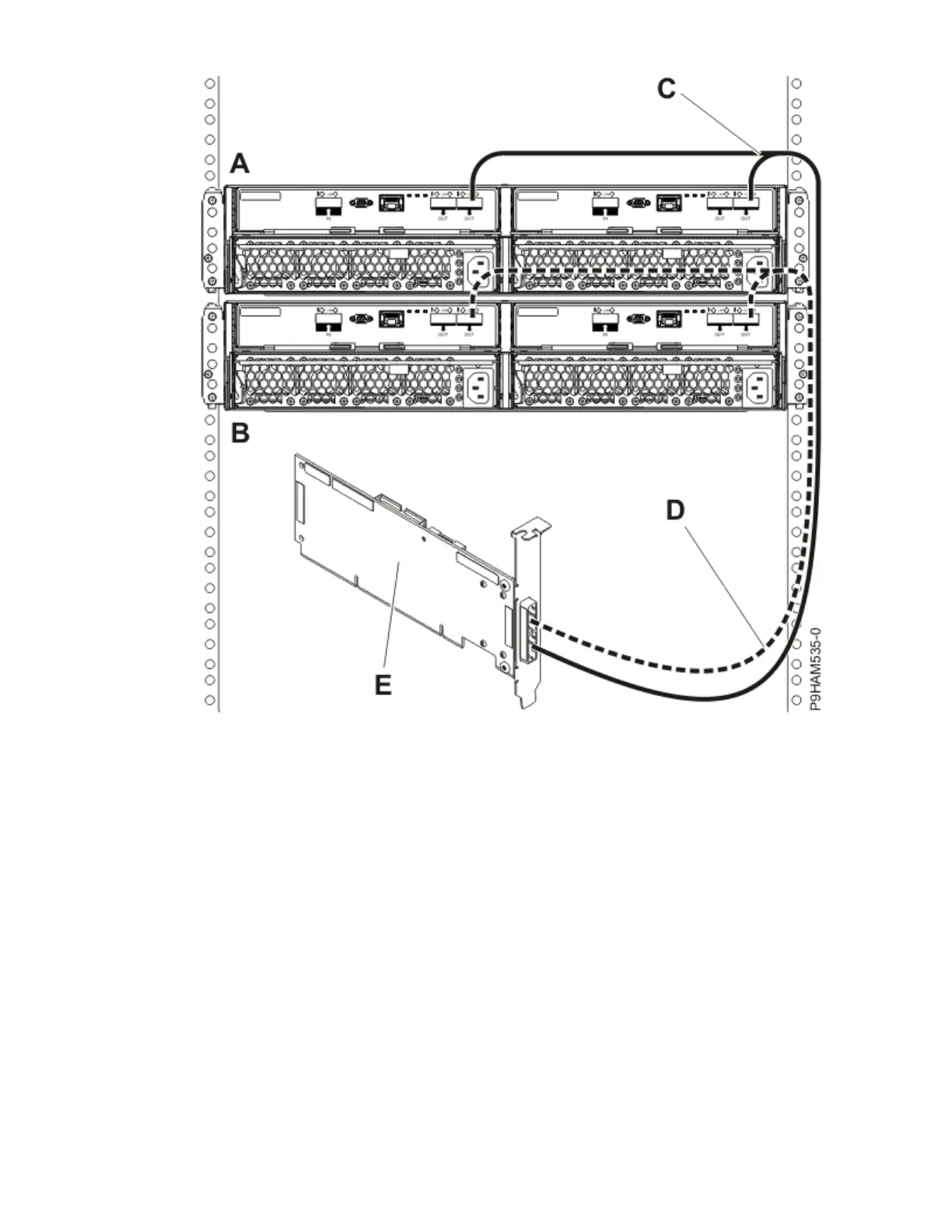

Figure 48. Mode 1 connection of two 5887 enclosures by using YO cables to a single SAS adapter
3. Dual SAS adapters to one 5887 enclosure by using a mode 1 connection.
• 5887 enclosure with one set of 24 hard disk drives (HDDs).
• Connection using dual SAS YO cables to connect to the 5887 enclosure.
126
Power Systems: Site and hardware planning
