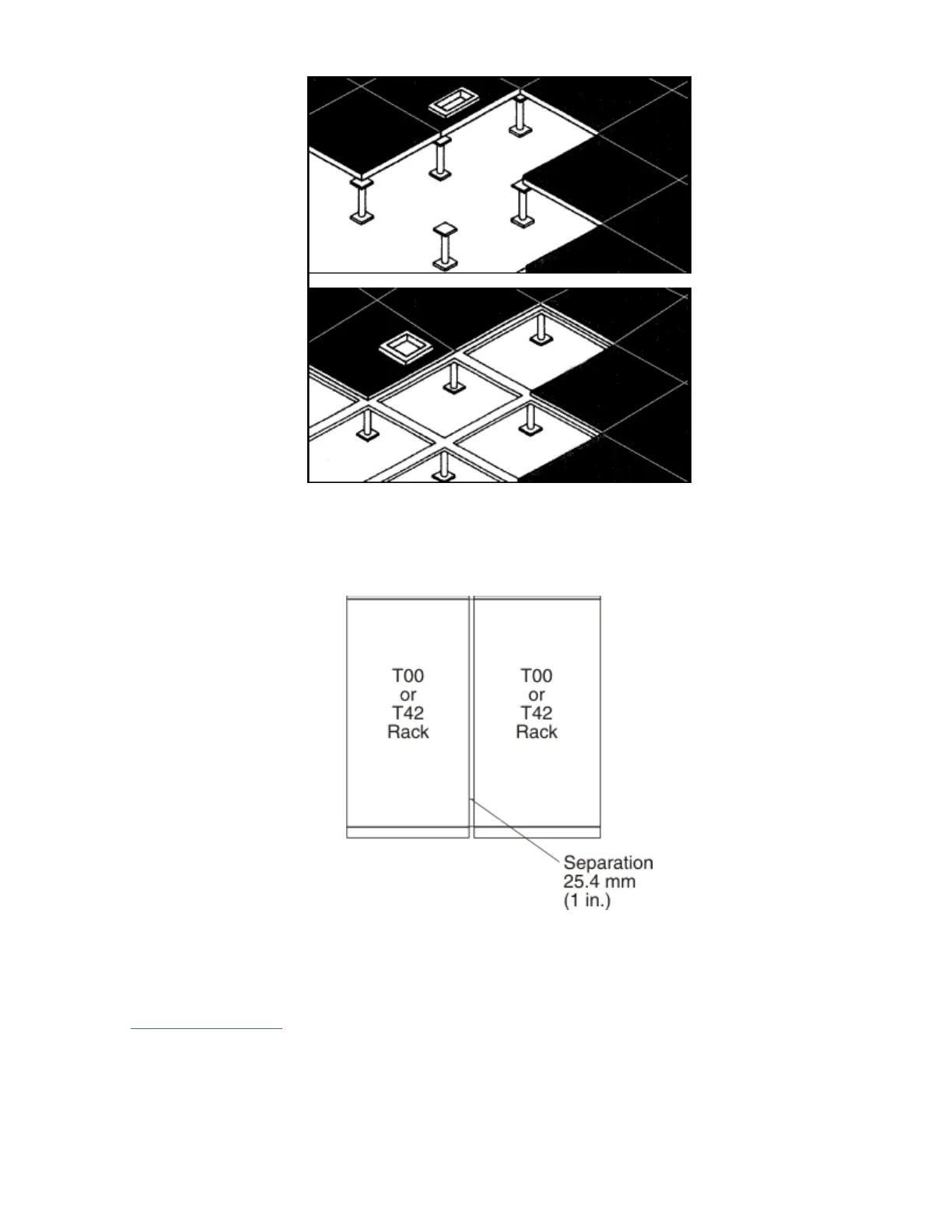

Figure 6. FC ERG0 assembled view
7014-T00 and 7014-T00 multiple attachment racks
Model 7014-T00 or 7014-T42 racks can be bolted together in a multiple-rack arrangement. This gure
shows that arrangement.
A kit is available including the bolts, spacers, and decorative trim pieces to cover the 25.4 mm (1 in.)
space. For service clearances, see the service clearances as shown in the table for the model 7014-T00
rack.
Related reference
Model 7014-T00 rack
36
Power Systems: Site and hardware planning
