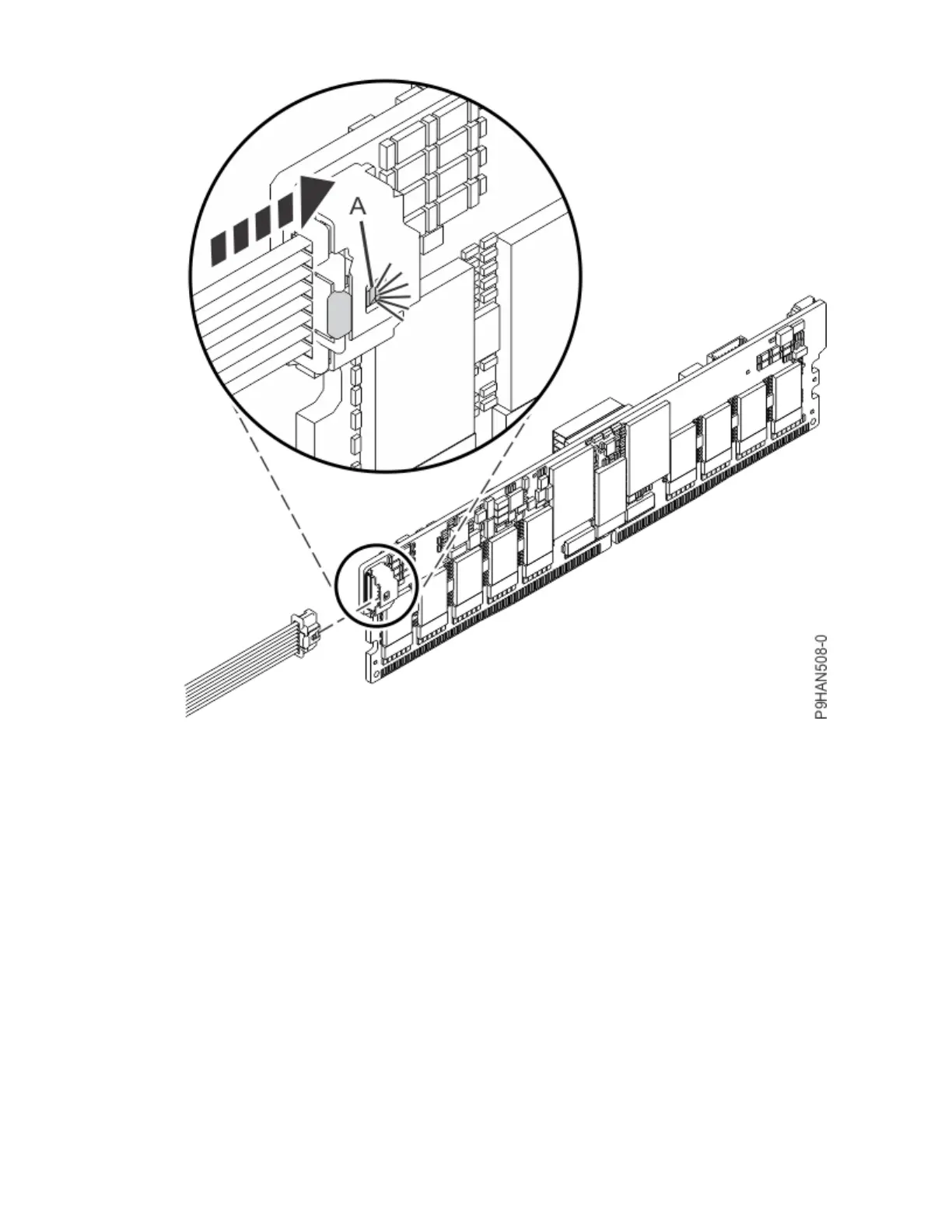

Figure 99. Connecting the BPM cable to the NVDIMM
c) Ensure that the locking tabs of the NVDIMM connector are open. Slowly press the NVDIMM
straight down, rmly into the slot, until the locking tabs lock into place. See the following gure.
Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H,
or 9223-22S 99
