IBM 9009-22A

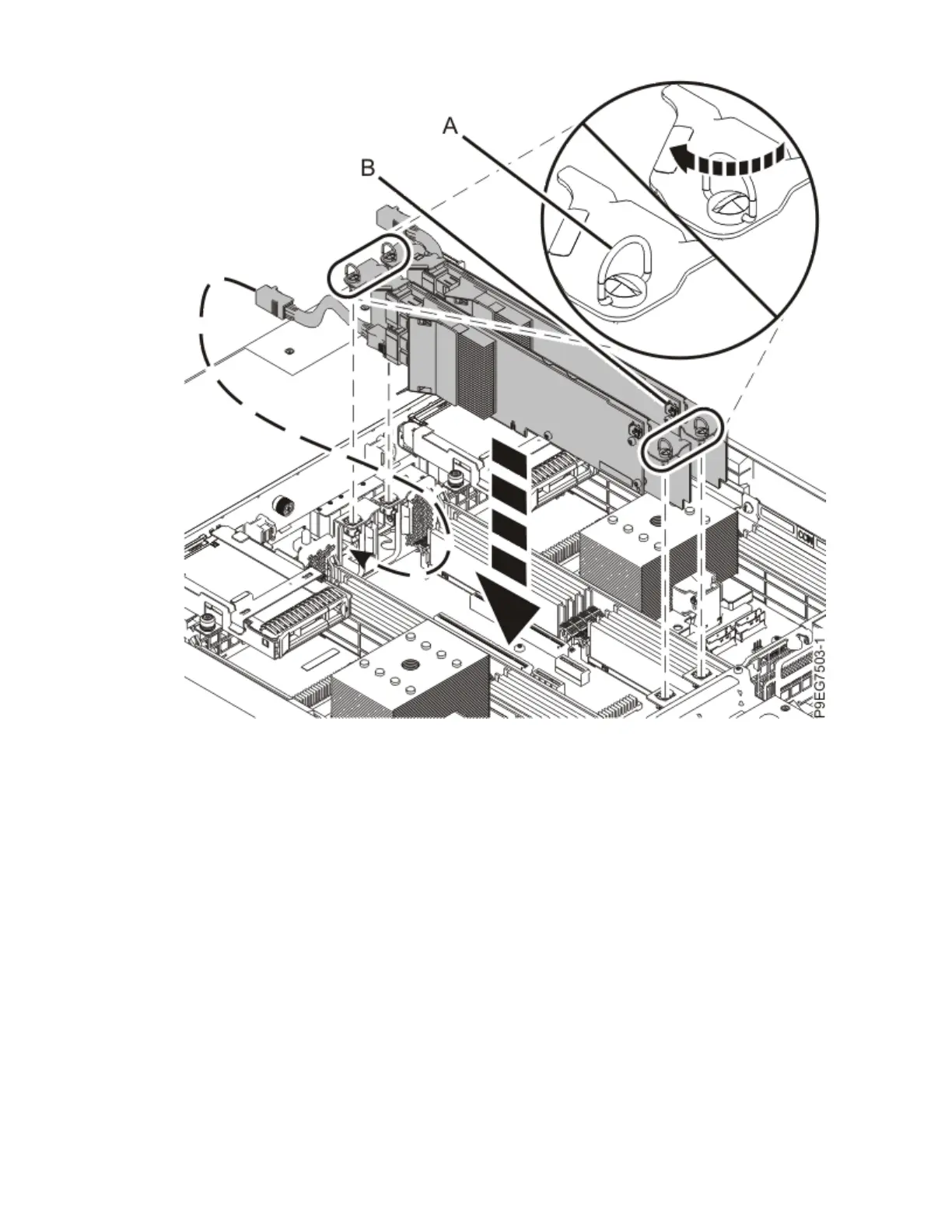

Figure 106. Replacing the SAS RAID adapter
b) If a rear SAS cable was attached to the SAS RAID adapter, reconnect the rear SAS cable (A) to the
SAS RAID adapter rear connector (B), as shown in the following gure.
106
Power Systems: System backplane
