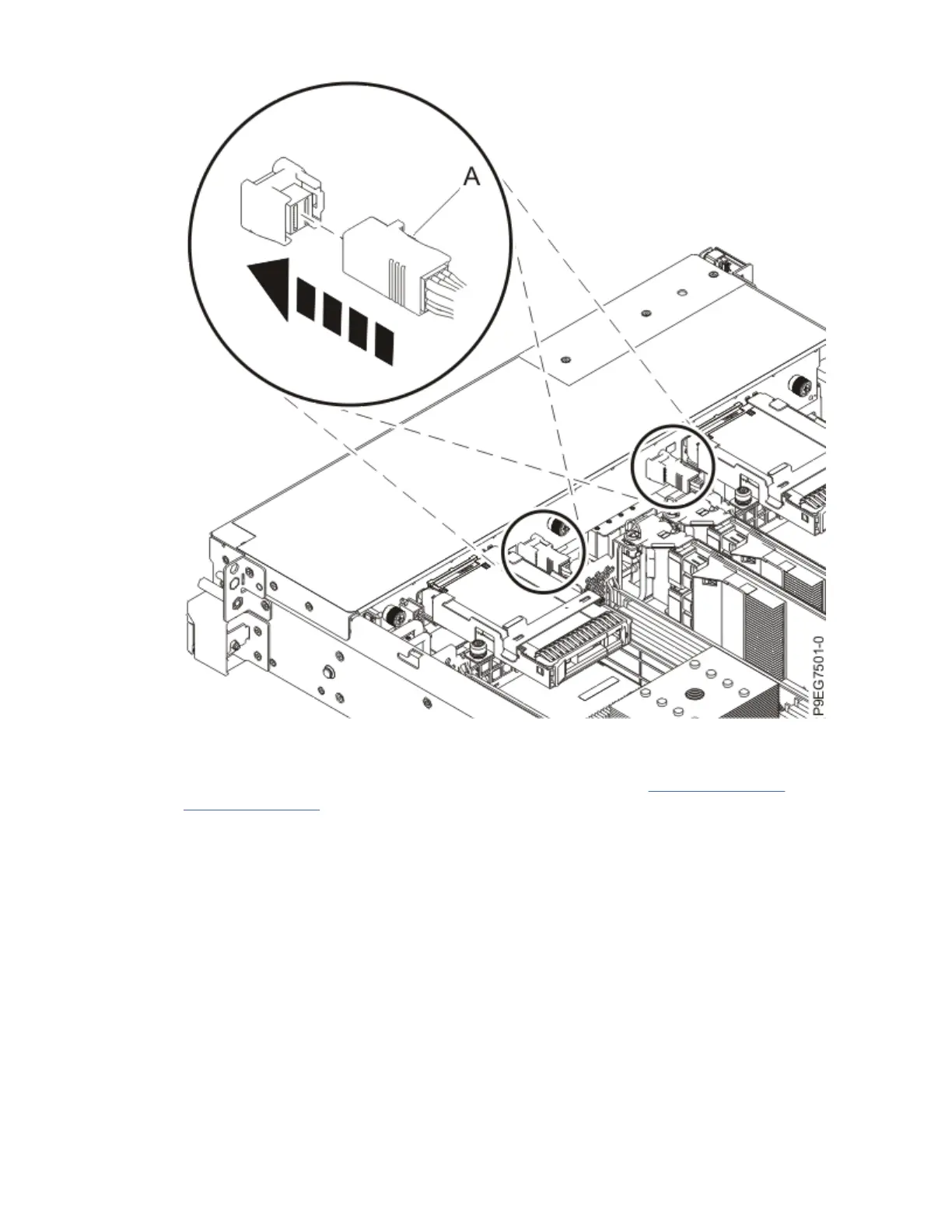

Figure 108. Reconnecting the front SAS cables
d) If you removed only one RAID adapter, replace the plastic air dividers between slots P1-C49 and
P1-C50. If you removed more than one RAID adapter repeat steps “20.a” on page 105 through
“20.c” on page 107.
21. Replace the PCIe adapter divider, if present. Otherwise, continue with the next step.
a) Carefully grasp the adapter divider by its edge or tailstock and slide the divider towards the
system chassis and into its slot. Make sure the tab (A) on the divider is fully seated and slides into
the groove (B) on the system backplane. See the following gure
Figure 109. Sliding the PCIe divider into the system
108
Power Systems: System backplane
