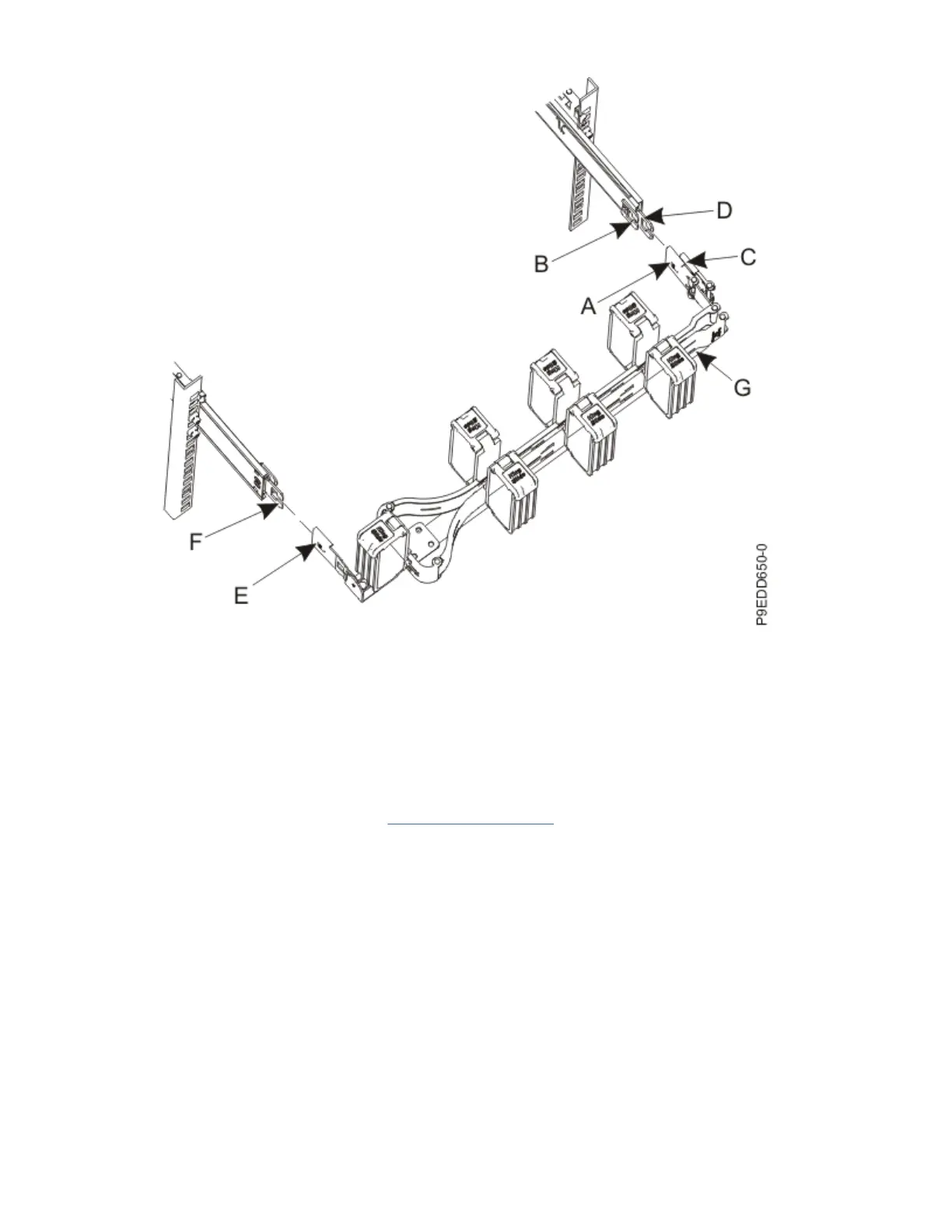

Figure 118. Cable management arm parts
6. Reconnect the cable management arm by inserting the inner cable management arm tab (A) into the
inner mounting bracket (B) until it clicks into place. As you insert the tab, ensure the pin on the
support arm is positioned between the inner and outer arm.
7. Continue to push the system unit all the way into the rack until both release latches lock the system
into the operation position.
8. Gently push the cover (A) in until the cover snaps into place.
The cover has indentations where you can hold it more easily. Use the alignment pin (B) to secure the
cover to the system as shown in Figure 119 on page 119. Push along the grill area above the fans to
secure the cover to the front.
118
Power Systems: System backplane
