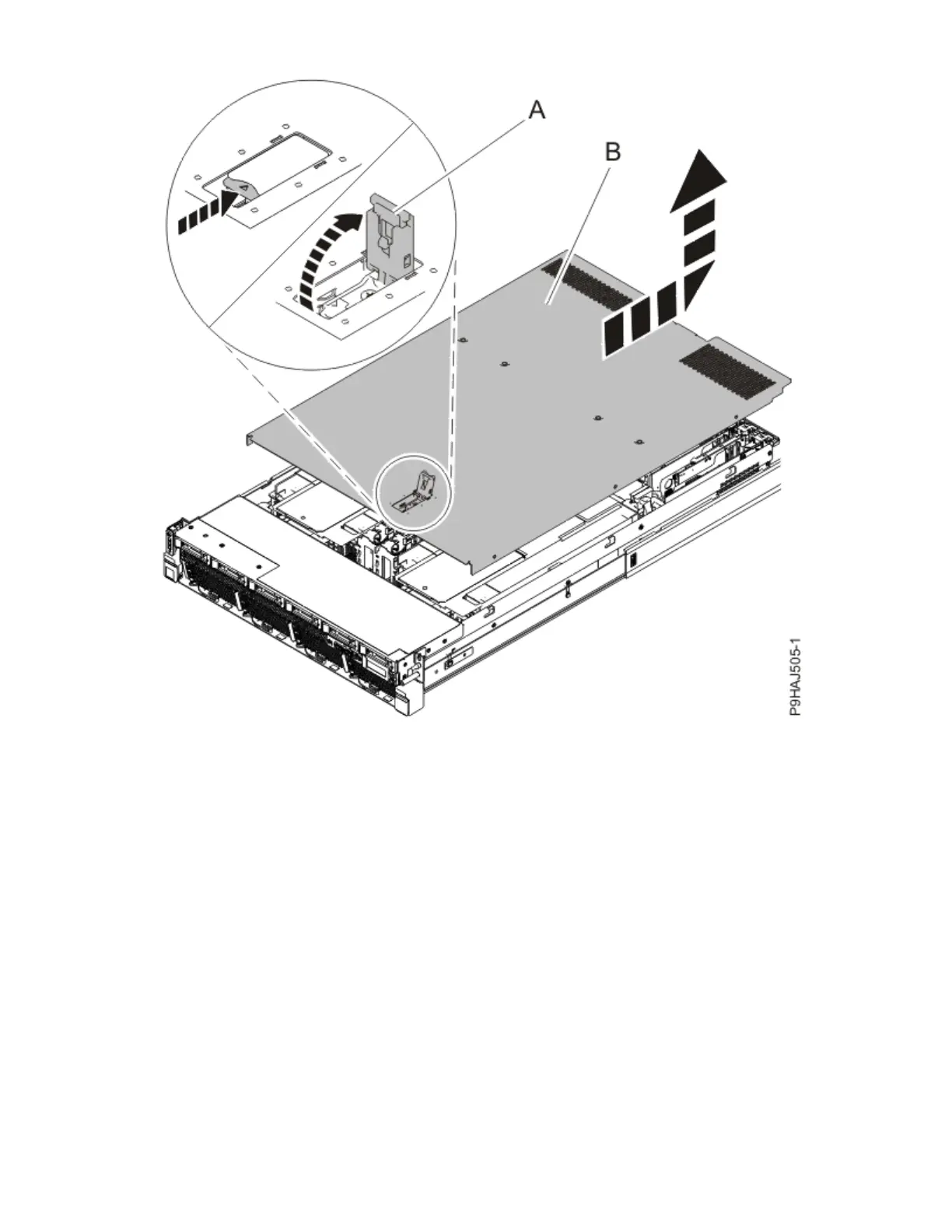

Figure 7. Removing the service access cover
17. To activate the identify LED for the faulty part, press and hold push-button (A) on the trusted
platform module card as shown in the following gure.
Verify that the LED (B) is lit, which indicates that sufcient power exists for the identify LED. If the
LED (B) is not lit, use the location code to nd the physical location by using the service label.
10
Power Systems: System backplane
