IBM 9009-22A

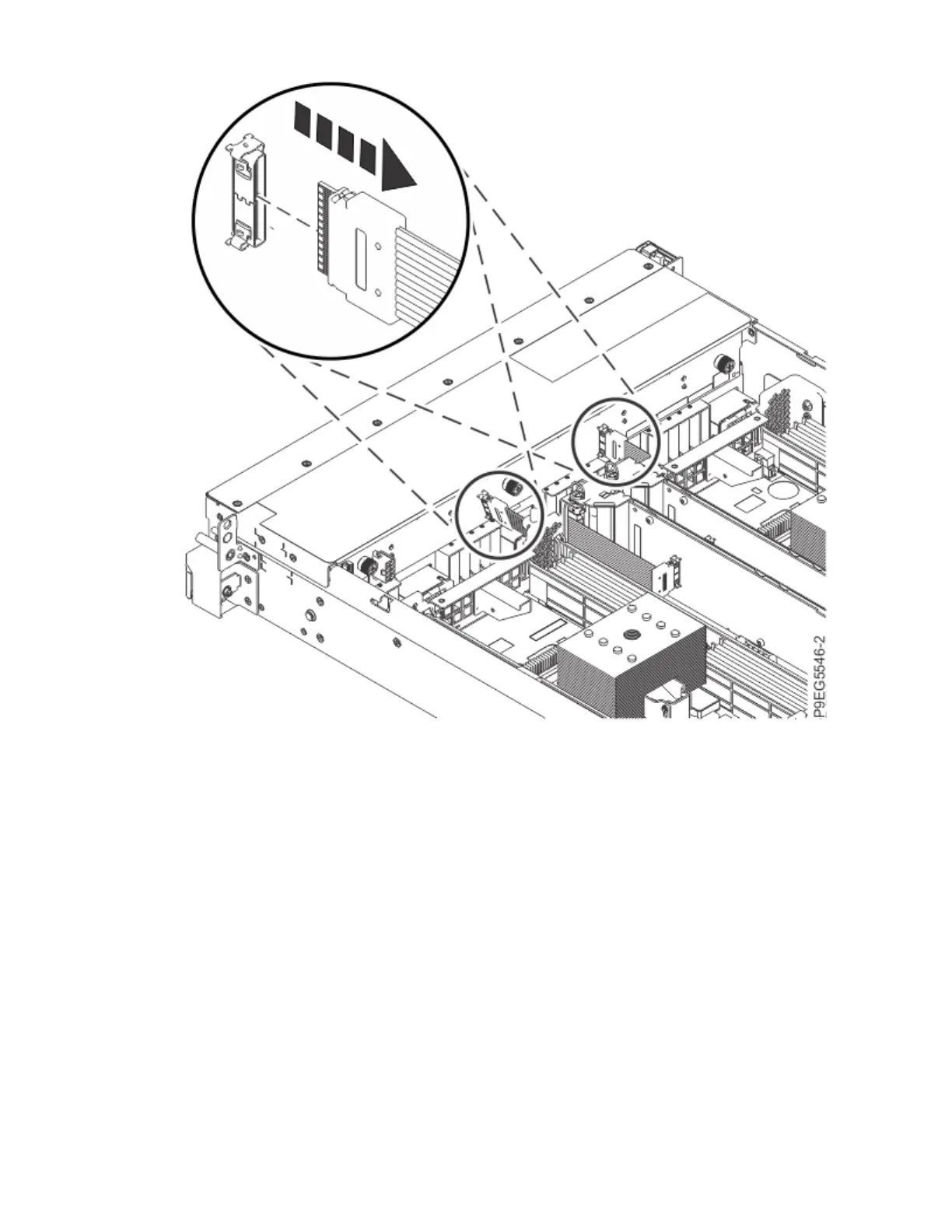

Figure 25. Disconnecting the NVMe cables from the NVMe drive backplane
b) Twist the screws (A) counterclockwise to release the NVMe U.2 pass-thru card. Lift both the NVMe
U.2 pass-thru card and the NVMe cable out of the slot as shown in the following gure.
28
Power Systems: System backplane
