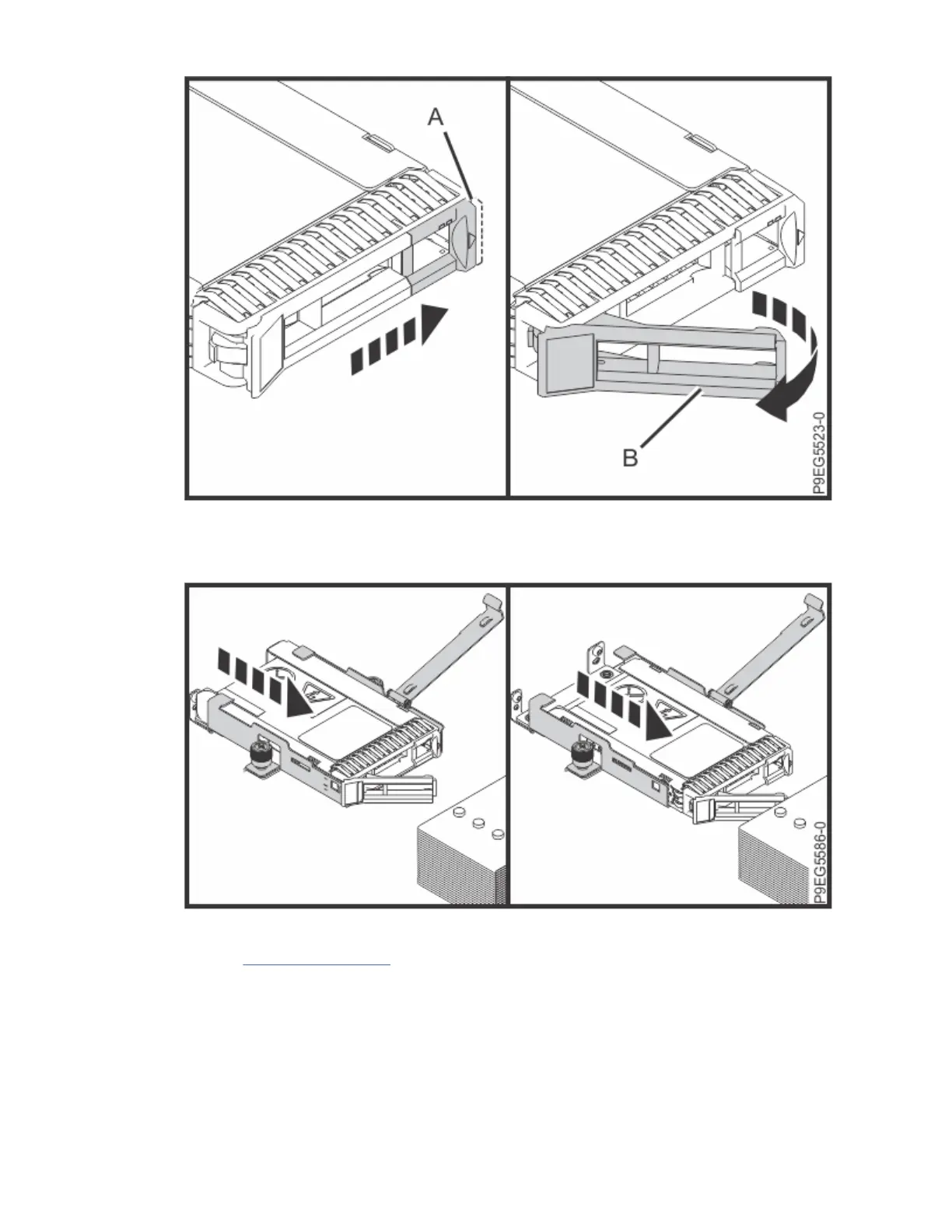

Figure 32. Unlocking the BPM handle
f) Using the BPM handle, pull the BPM about 2.5 cm (1 in.) from the disk drive backplane. See the
following gure.
Figure 33. Sliding the BPM forward
g) Refer to Figure 34 on page 36. Rotate the BPM on its longer axis to expose the cable connectors
at the bottom of the BPM.
Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H,
or 9223-22S 35
