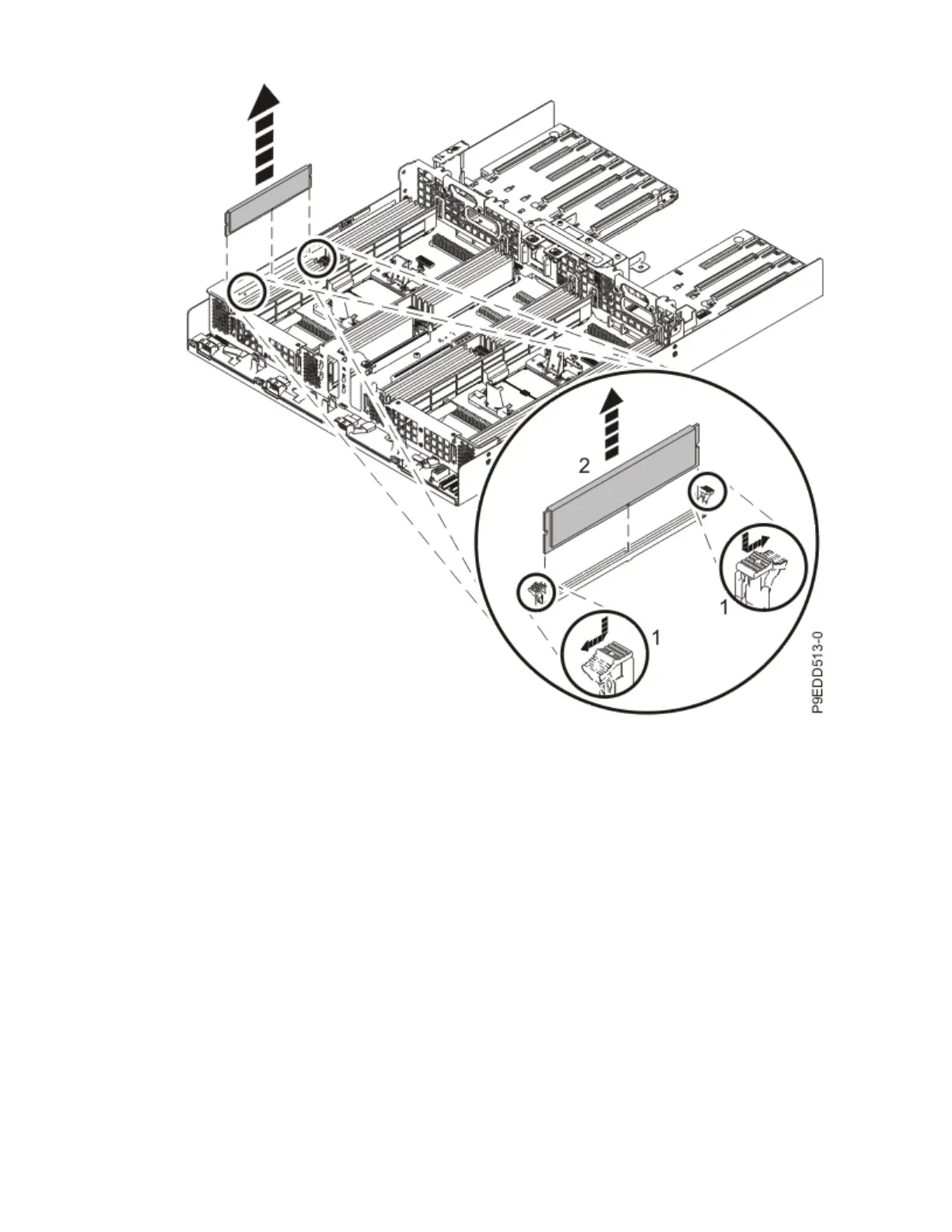

Figure 62. Removing a memory module
b) Hold the memory module or ller by the edges and pull it out of the system. Note the location
from which you are removing the memory module.
c) Identify the corresponding location on the new system backplane and ensure that the locking tabs
are open. See the following gure.
Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H,
or 9223-22S 63
