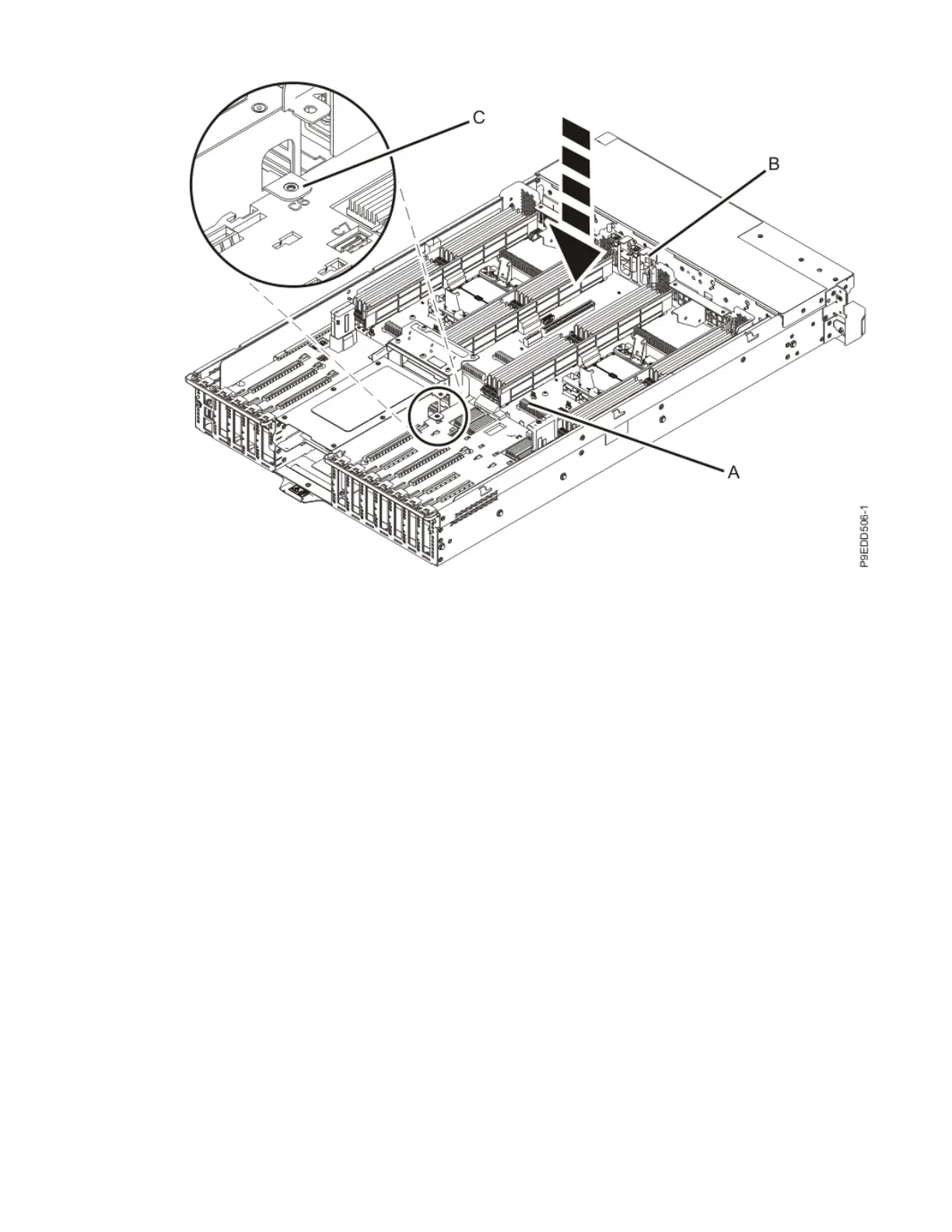

Figure 67. Grasping the system backplane and lowering it into the chassis
b) Tilt the backplane so that the front end is high and the back end is low as you continue to lower
the backplane into the chassis. When the backplane catches on the tabs (A) on the power supply
cage, lower the front end enough so that it clears the tabs. See the following gure.
68
Power Systems: System backplane
