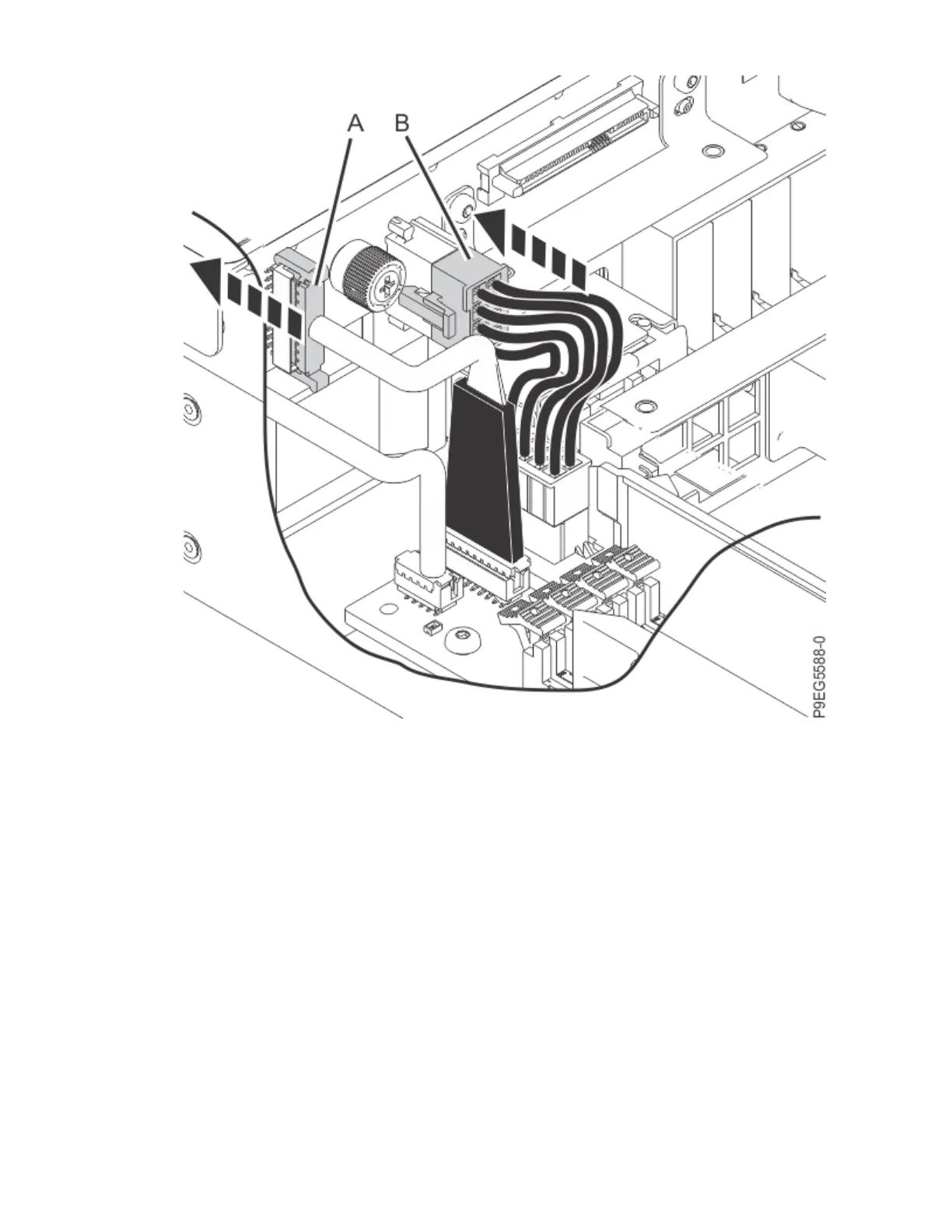

Figure 82. Reconnecting the signal cable and the power cable
12. Replace the NVMe drive backplane:
a) The chassis has four alignment pins (B) to secure the NVMe drive backplane (A). Insert the NVMe
drive backplane as shown in the following gure. Ensure that the alignment pins t through the
holes in the NVMe drive backplane.
82
Power Systems: System backplane
