Important: When removing the cable, note where the connections are and how the cable is routed.
You need this information to complete the replacement procedure.
1) In a rack-mounted system, disconnect the signal cable (B) from port (A) on the back of the
backplane and lift the cable out of the system.
2) In a stand-alone system, disconnect the signal cable (B) from port (A) on the back of the
backplane and lift the cable out of the system.

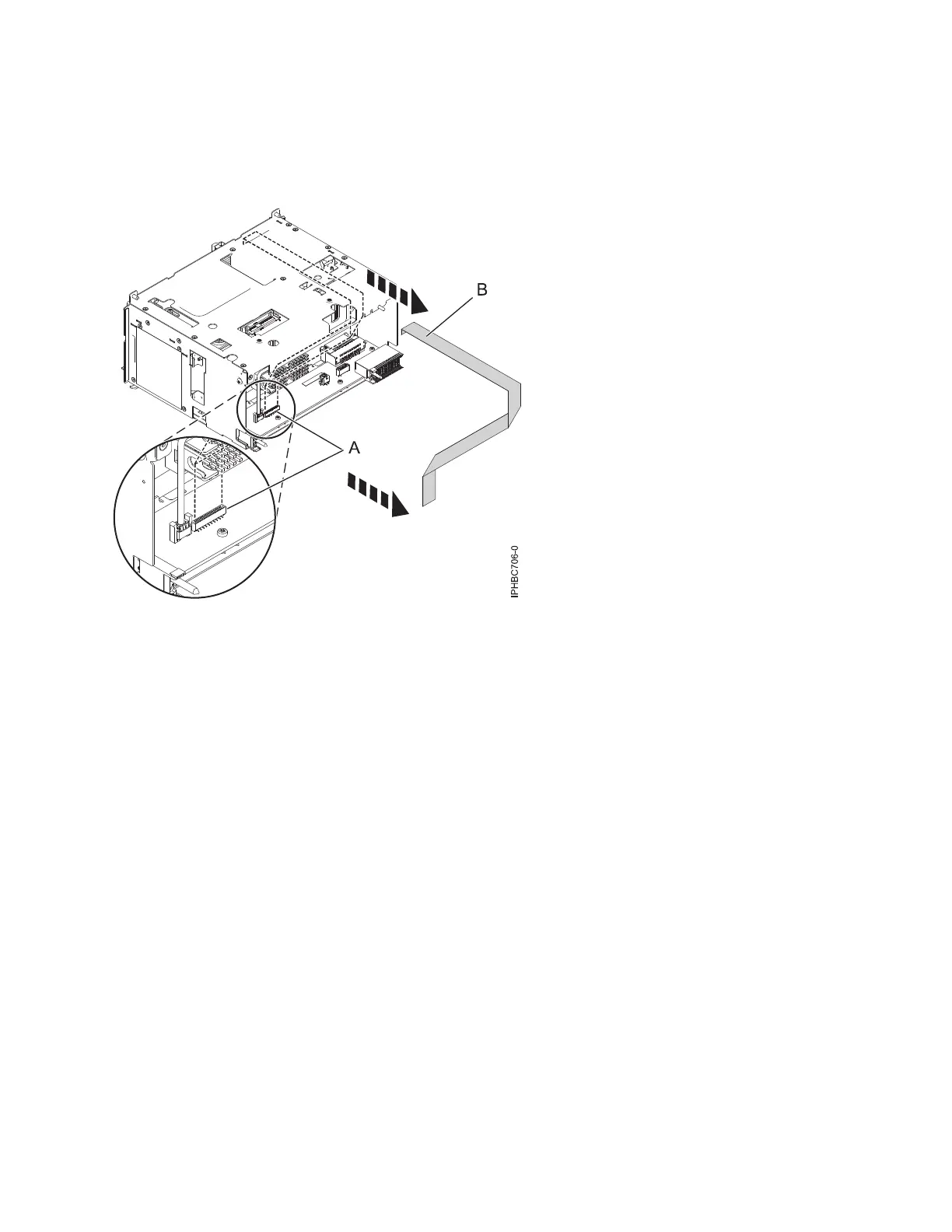

Figure 7. Removal of a signal cable in a rack-mounted system
Chapter 1. 8203-E4A, 8204-E8A, 8261-E4S, 9407-M15, 9408-M25, or 9409-M50 control panel 9
