3. Slide the cover to the right, and remove it from the system unit.
Installing the front cover on the 8234-EMA, 9117-MMA, or 9406-MMA
Use this procedure to install the cover after accessing components or performing service.
To install the front cover follow these steps:
1. Position the cover on the front of the system unit so that the tab on the left side of the cover is in the
matching slot on the left side of the system unit as shown in the following figure.

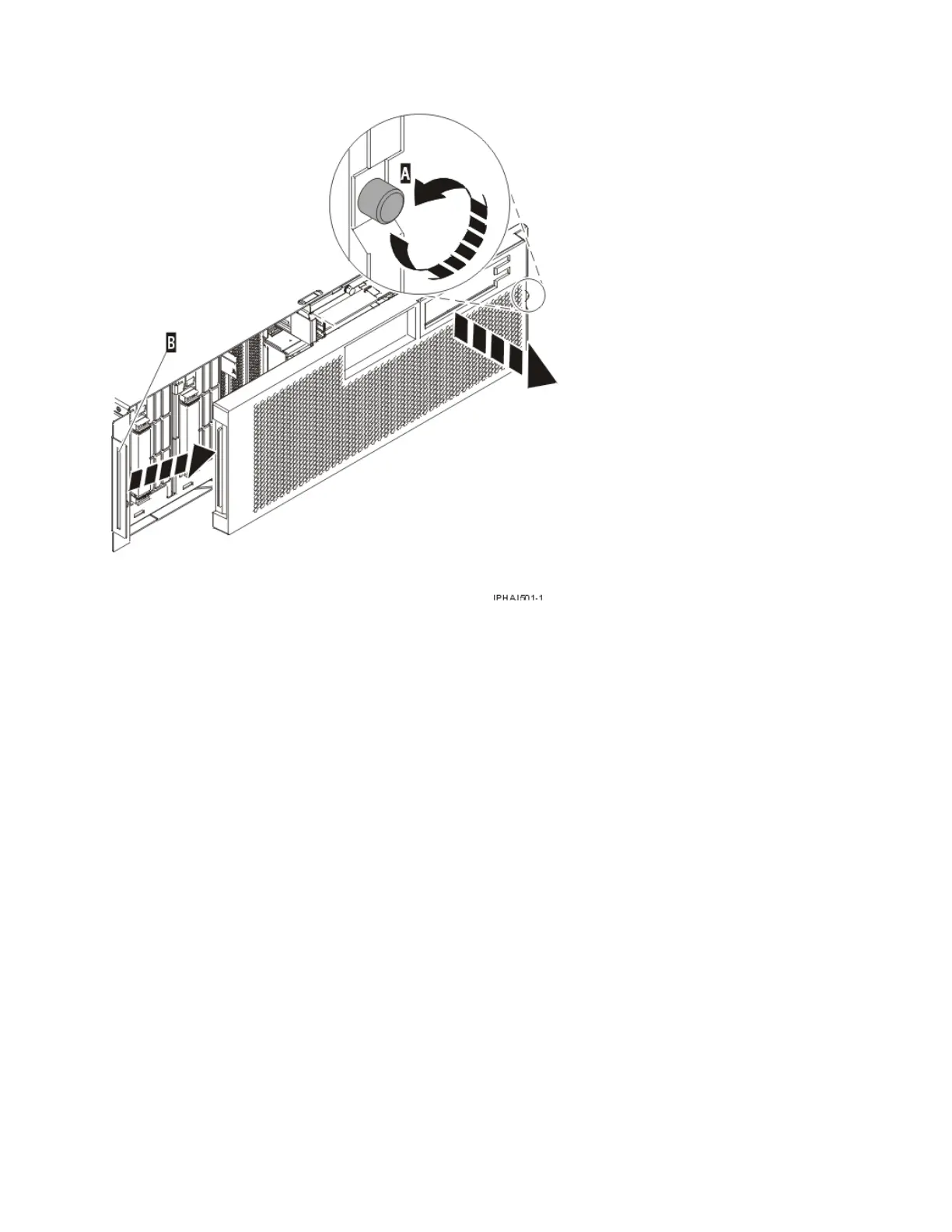

Figure 30. Removing the front cover
Chapter 3. Common procedures for installable features 41
