To install or replace the control panel with the power on, complete the following Procedure:
1. Perform the prerequisite tasks described in “Before you begin” on page 25.
2. If you have not already done so, remove the control panel with power on. See “Removing the
8234-EMA, 9117-MMA, or 9406-MMA control panel with power on” on page 17.
Attention: If you are not immediately installing or replacing the control panel, a control panel filler
must be in place when the system power is on for proper air flow and cooling. For instructions
about installing a control panel filler, see “Removing and installing the 8234-EMA, 9117-MMA, or
9406-MMA control panel filler” on page 23.
3. If necessary, remove the new control panel from its packaging. If there are control-panel overlays
included with the new control panel, install the appropriate overlay on the control panel.
Note: Remove the machine type label, with the serial number, from the front of the existing control
panel and place the label on the new control panel.
4. Carefully slide the control panel into the control panel bay until you feel the locking tabs (A) lock in
place as shown.
5. Access the Advanced System Management Interface (ASMI).
6. In the navigation area of the ASMI, select Concurrent maintenance → Control panel.
7. At the control panel window, select Install and click Continue.
8. Choose the control panel's location and click Save Settings. If the operation was successful, the
window will display Operation completed successfully.
Note: If a ball or dot is displayed in the middle of the control panel, toggle between function 02 and
function 01 until the ball or dot disappears.
9. Install the front cover onto your system. See “Installing the front cover on the 8234-EMA,
9117-MMA, or 9406-MMA” on page 41.
10. Verify that the new resource is functional. See “Hardware service manager Verify option” on page
52.

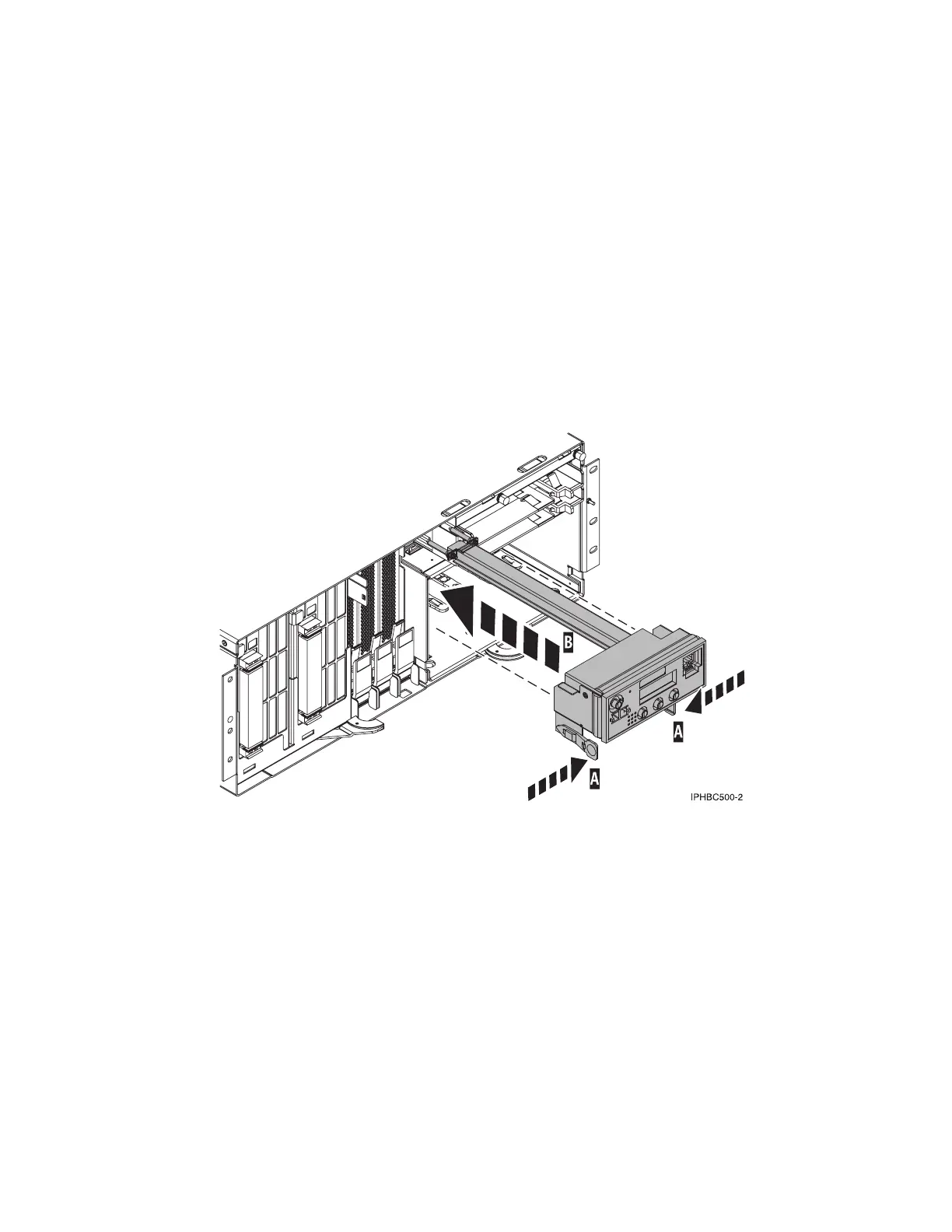

Figure 17. Replacing a control panel
Chapter 2. 8234-EMA, 9117-MMA, or 9406-MMA control panel 19
