v A: Power-on button
v B: On/off power symbol
v C: Serial number label
v D: Function/Data display
v E: System port (S1)
v F: Power LED
A flashing light indicates standby power to the unit.
A constant light indicates full system power to the unit.
Note: There is approximately a 30 second transition period from the time the power-on button is
pressed to when the power LED goes from flashing to solid. During the transition period, you
might observe the flashing intervals speed up.
v G: Decrement button
v H: Enter button
v I: Increment button

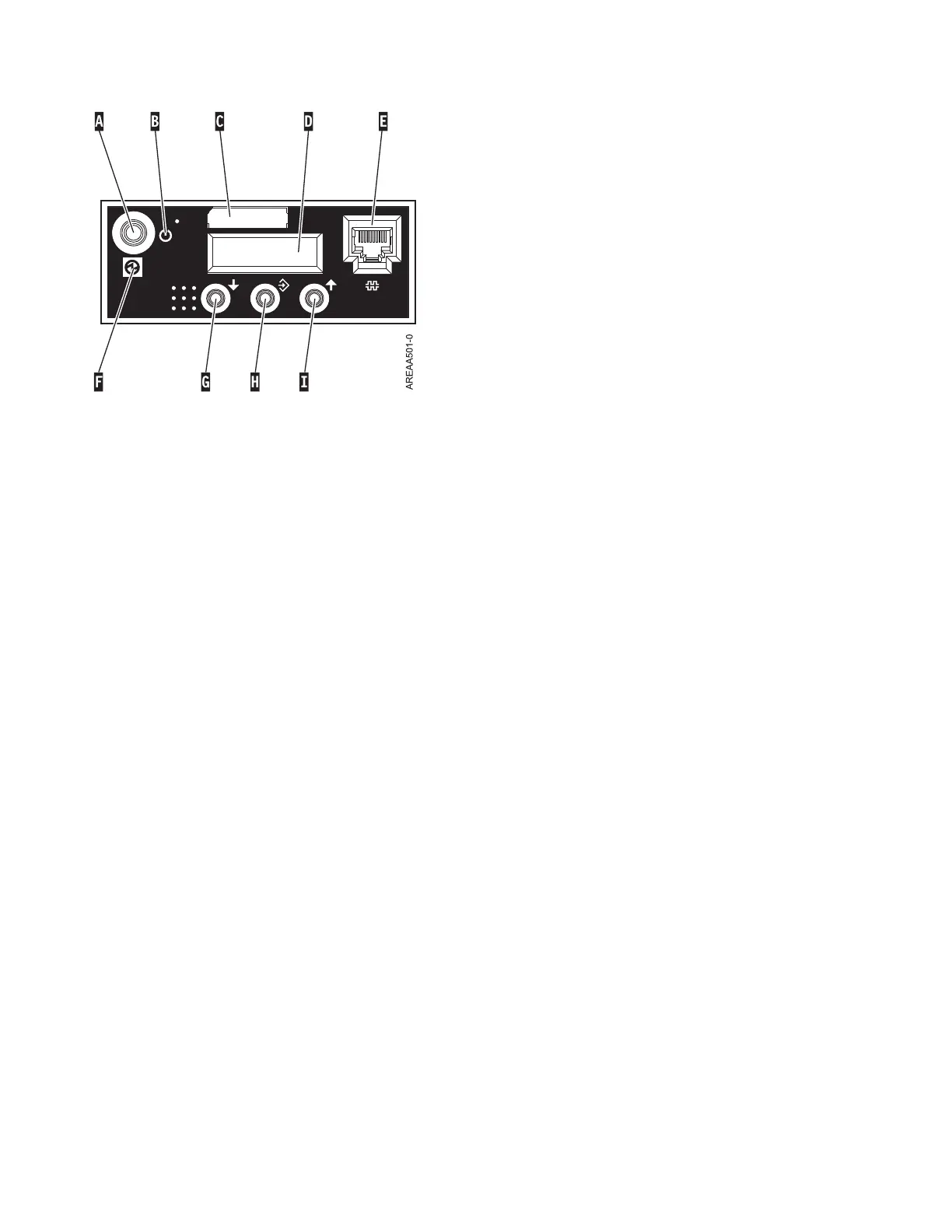

Figure 20. 570 control panel
28 Control panel, control panel fillers, and signal cables
