3.
Release
the
rack
latches
(A)
on
both
the
left
and
right
sides
as
shown
in
the
following
figure.

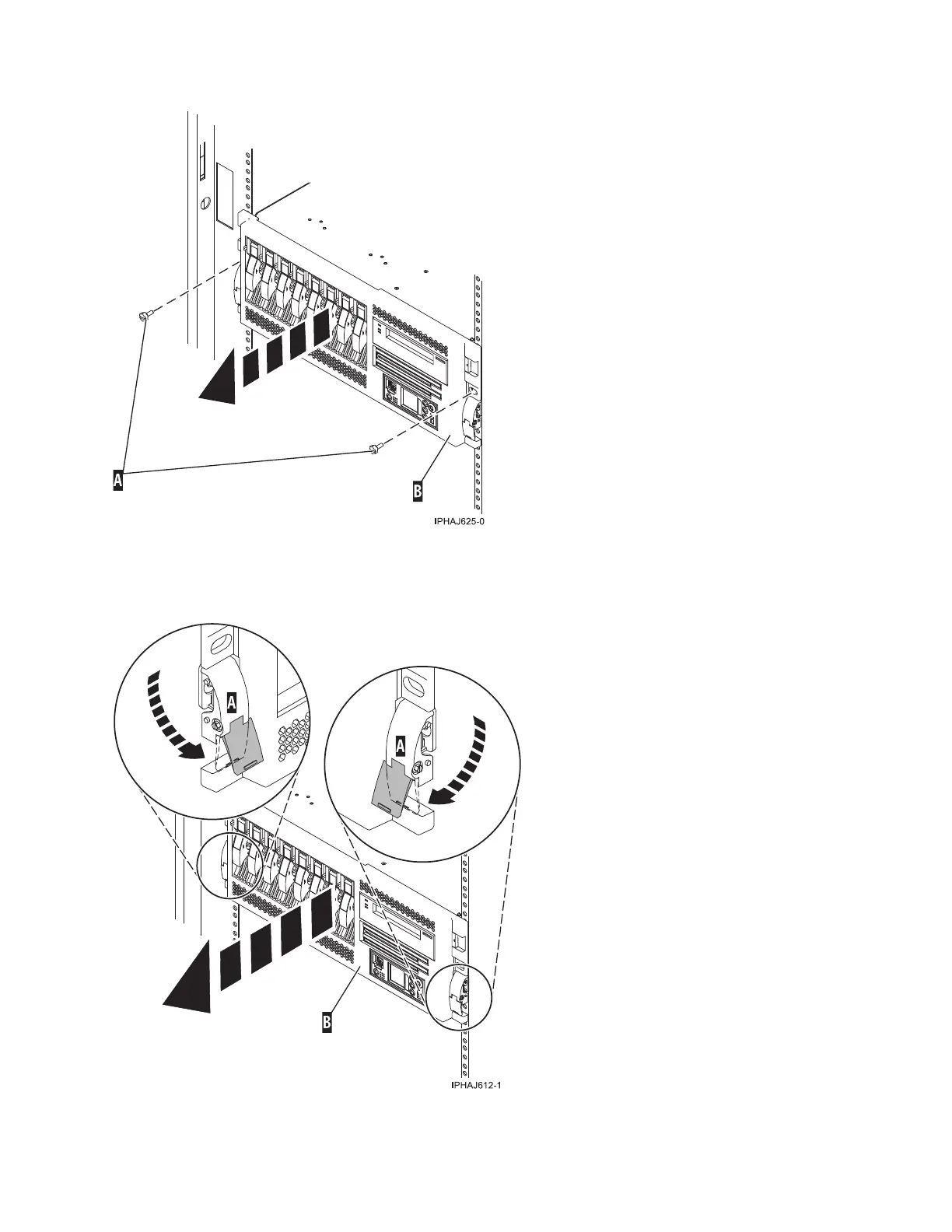

Figure
32.
Removing
the
thumbscrews
from
the
system
and
rack
Figure
33.
Releasing
the
rack
latches
Chapter
3.
Common
procedures
for
installable
features
45
52
54
Table of Contents
Default Chapter
5
Table of Contents
5
Safety Notices
7
Control Panel, Control Panel Fillers, or Signal Cables
9
Chapter 1. 8203-E4A, 8204-E8A, 8261-E4S, 9407-M15, 9408-M25, or 9409-M50 Control Panel
11
Removing the 8203-E4A, 8204-E8A, 8261-E4S, 9407-M15, 9408-M25, or 9409-M50 Control Panel with the Power off
11
Replacing the 8203-E4A, 8204-E8A, 8261-E4S, 9407-M15, 9408-M25, or 9409-M50 Control Panel with the Power off
13
Removing and Replacing the 8203-E4A, 8204-E8A, 8261-E4S, 9407-M15, 9408-M25, or 9409-M50 Control Panel Fillers
15
Removing and Replacing the 8203-E4A, 8204-E8A, 8261-E4S, 9407-M15, 9408-M25, or 9409-M50 Control-Panel Signal Cable
15
Chapter 2. 8234-EMA, 9117-MMA, or 9406-MMA Control Panel
25
Removing the 8234-EMA, 9117-MMA, or 9406-MMA Control Panel with Power on
25
Installing or Replacing the 8234-EMA, 9117-MMA, or 9406-MMA Control Panel with Power on
26
Removing the 8234-EMA, 9117-MMA, or 9406-MMA Control Panel with Power off
28
Installing or Replacing the 8234-EMA, 9117-MMA, or 9406-MMA Control Panel with Power off
30
Removing and Installing the 8234-EMA, 9117-MMA, or 9406-MMA Control Panel Filler
31
Chapter 3. Common Procedures for Installable Features
33
Before You Begin
33
Starting the System or Logical Partition
35
Starting a System that Is Not Managed by a Hardware Management Console
35
Starting a System or Logical Partition Using the Hardware Management Console
38
Starting a System or Virtual Server with the Systems Director Management Console
38
Stopping a System or Logical Partition
38
Stopping a System that Is Not Managed by a Hardware Management Console
38
Stopping a System by Using the Hardware Management Console
39
Stopping a System with the Systems Director Management Console
40
Removing and Replacing Covers and Doors
41
Removing the Service Access Cover from a Rack-Mounted 8203-E4A, 8204-E8A, 8261-E4S, 9407-M15, 9408-M25, or 9409-M50
41
Installing the Service Access Cover on a Rack-Mounted 8203-E4A, 8204-E8A, 8261-E4S, 9407-M15, 9408-M25, or 9409-M50
41
Removing the Service Access Cover from a Stand-Alone 8203-E4A, 8204-E8A, 8261-E4S, 9407-M15, 9408-M25, or 9409-M50
42
Installing the Service Access Cover on a Stand-Alone 8203-E4A, 8204-E8A, 8261-E4S, 9407-M15, 9408-M25, or 9409-M50
43
Removing the Front Cover from a Rack-Mounted 8203-E4A, 8204-E8A, 8261-E4S, 9407-M15, 9408-M25, or 9409-M50
44
Installing the Front Cover on a Rack-Mounted 8203-E4A, 8204-E8A, 8261-E4S, 9407-M15, 9408-M25, or 9409-M50
45
Removing the Door from the 8204-E8A or 9409-M50
46
Installing or Replacing the Door on the 8204-E8A or 9409-M50
46
Removing the Front Cover from the Stand-Alone 8203-E4A, 8204-E8A, 8261-E4S, 9407-M15, 9408-M25, or 9409-M50
46
Installing the Front Cover on a Stand-Alone 8203-E4A, 8204-E8A, 8261-E4S, 9407-M15, 9408-M25, or 9409-M50
47
Removing the Front Cover from the 8234-EMA, 9117-MMA, or 9406-MMA
48
Installing the Front Cover on the 8234-EMA, 9117-MMA, or 9406-MMA
49
Placing the Rack-Mounted System or Expansion Unit in the Service Position
50
Placing the Rack-Mounted System or Expansion Unit in the Service Position or Operating Position
50
Placing the Rack-Mounted System or Expansion Unit in the Operating Position
54
Placing a Rack-Mounted 8203-E4A, 8204-E8A, 8261-E4S, 9407-M15, 9408-M25, or 9409-M50 in the Service Position
55
Placing the Rack-Mounted 8203-E4A, 8204-E8A, 8261-E4S, 9407-M15, 9408-M25, or 9409-M50 in the Operating Position
58
Hardware Service Manager Verify Option
60
Verifying an Installed Feature or Replaced Part on an AIX System or Logical Partition
60
Verifying an Installed Part on an IBM I System or Logical Partition
63
Deactivating the Failing-Part Indicator Light
63
Verifying the Installed Part on a Linux System or Logical Partition
63
Verifying an Installed Part Using Stand-Alone Diagnostics
63
Verifying an Installed Part Using Hardware Management Console
65
Activating and Deactivating Leds
65
Deactivating a System Attention LED or Partition LED
65
Activating or Deactivating Identify LED
66
Viewing Serviceable Events
66
Verifying the Installed Part by Using Systems Director Management Console
67
Activating and Deactivating Leds by Using the SDMC
68
Activating or Deactivating Identify LED by Using the SDMC
68
Deactivating a System Attention LED or Partition LED
68
Viewing Serviceable Events by Using the IBM Systems Director Management Console
69
Verifying an Installed Feature or Replaced Part on a System or Logical Partition Using Virtual I/O Server Tools
69
Installing a Feature Using the Hardware Management Console
71
Removing a Part Using the Hardware Management Console
72
Exchanging a Part Using the Hardware Management Console
72
Installing a Part by Using the Systems Director Management Console
73
Removing a Part by Using the Systems Director Management Console
73
Replacing a Part by Using the Systems Director Management Console
74
Appendix. Notices
75
Trademarks
76
Electronic Emission Notices
76
Class a Notices
76
Terms and Conditions
80
